Biomedical imaging This project is concerned with biomedical images often with applications to Magnetic Resonance Imaging (MRI) problem, ranging from functional, diffusion-weighted, quantitative MRI to image reconstruction in Magnetic Resonance Fingerprinting. The methods developed in this project arise from different areas of mathematics specifically from non-parametric statistics and non-smooth variational methods.

Research Group 6 Research Group 8

Structural adaptive smoothing methods for imaging problems

Images are often characterized by qualitative properties of their spatial structure, e.g. spatially extended regions of homogeneity that are separated by discontinuities. Images or image data with such a property are the target of the methods considered in this research. The methods summarized under the term structural adaptive smoothing try to employ a qualitative assumption on the spatial structure of the data. This assumption is used to simultaneously describe the structure and efficiently estimate parameters like image intensities. Structural adaptive smoothing generalizes several concepts in non-parametric regression. The methods are designed to provide intrinsic balance between variability and bias of the reconstruction results.

A first attempt to use the idea of structural adaptive smoothing for image processing was proposed in Polzehl and Spokoiny (2000) under the name adaptive weights smoothing. This was generalized and refined especially in Polzehl and Spokoiny (2006) providing a theory for the case of one-parameter exponential families. This has become known under the name propagation-separation approach. Several extentions have been made to cover locally smooth images, color images (Polzehl and Tabelow, 2007) and applications from the neurosciences like functional Magnetic Resonance Imaging (fMRI) and diffusion-weighted Magnetic Resonance Imaging (dMRI).

Non-smooth Variational Models for Medical Image Reconstruction

Non-smooth variational (energy minimizing) models form a powerful tool for addressing inverse medical imaging problems. The idea is to obtain the image reconstruction by inverting the operator which models a given medical imaging modality in a stable and robust way. Examples of such operators are the Radon transform for Positron Emission Tomography (PET) and a subsampling operator of a signal's Fourier coefficients for Magnetic Resonance Imaging (MRI). This inversion is typically an ill-posed problem and it is further complicated by the presence of random noise. Therefore, a Tikhonov regularization approach is employed where some a priori information in encoded in the regularization term. For a stable inversion, non-smooth regularisers, e.g. of Total Variation (TV) type, are popular due to their ablilty to preserve prominent features in the reconstruction (edges).

There are several challenges that need to be resolved:

  • The choice of the right regularizer is crucial as this is closely linked to exploiting the a priori information in a meaningful way.
  • The choice and adaptation of the regularization weight must be finely tuned. This determines the amount of regularization (filtering) that is applied locally.
  • An analysis in function space is of high importance. This provides an understanding of the regularizing mechanisms independently of discretization artifacts while it sets up the framework for the design of solution algorithms in function space which exhibit resolution independent convergence behaviour.

Adaptive noise reduction and signal detection in fMRI

In a series of publications we develop dedicated methods for noise reduction and signal inference in functional MRI based on the propagation-separation approach: In Tabelow et al. 2006 we proposed a new adaptive method for noise reduction of the statistical parametric map in a single-subject fMRI dataset. The properties of this map after smoothing allow for the application of Random Field theory for signal detection. We demonstrated that the method is able to recover the signal-to-noise loss when increasing the spatial resolution of the MRI acquisition (Tabelow et al. 2009) and its applicability for pre-surgical planning (Tabelow et al. 2008). Later, we were able to include the signal detection into a coherent statistical framework for adaptive fMRI analysis in a structural adaptive segmentation method (Polzehl et al. 2010), see Figure 1.

All adaptive methods for fMRI are implemented in the R software environment for statistical computing and graphics as a free contributed package fmri. It can be downloaded from the CRAN server. It is also listed at NITRC and part of the WIAS R packages for neuroimaging. The structural adaptive segmentation algorithm is available as Adaptive Smoothing Plugin for the neuroimaging software BrainVoyager QX.

Signal detection in fMRI

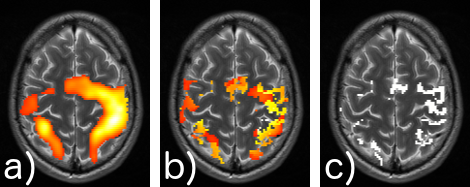

Figure 1. - Signal detection in a single-subject finger-tapping experiment using (Left to right) a) standard Gaussian filter b) structural adaptive smoothing and Random field theory (RFT) (Tabelow et al. 2006), c) structural adaptive segmentation (Polzehl et al. 2010).

Functional connectivity

coming soon

Analysis of diffusion-weighted MRI data

Figure 2. - A slice of the fractional anisotropy (FA) map obtained in DTI. Move the yellow slider with the mouse pointer to switch between the original noisy map and the result after denoising with msPOAS (Becker et. al 2012).

The signal attenuation by the diffusion weighting in dMRI makes this imaging modality vulnerable to noise. We developed a structural adaptive smoothing method for Diffusion Tensor Imaging data (Tabelow et al. 2008; Polzehl and Tabelow 2009). The method uses local comparisons of the estimated diffusion tensor to define the local homogeneity regions for the propagation-separation approach. We developed a position-orientation adaptive smoothing algorithm for denoising of diffusion-weigthed MR data (POAS). This algorithm works in the orientation space of the measurement and does not refer to a model for the spherical distribution of the data like the diffusion tensor (Becker et. al 2012). Recently, the method could be extended for multi-shell dMRI data as multi-shell POAS (msPOAS) (Becker et al. 2014), see Figure 2.

All adaptive methods for dMRI are implemented in the R software environment for statistical computing and graphics as a free contributed package dti. It can be downloaded from the CRAN server. It is also listed at NITRC and part of the WIAS R packages for neuroimaging. The msPOAS method is also implemented in Matlab as part on the ACID-Toolbox for SPM (Tabelow et al. 2015). The method has shown to be an essential part of an improved processing pipeline for Diffusion Kurtosis Imaging (DKI) in Mohammadi et al. 2015.

The application of many processing methods to neuroimaging data, like the denoising method msPOAS, requires knowledge on the (local) noise level in the data. In Tabelow et al. 2015 we provide a new method LANE for the corresponding estimation problem. The knowledge about the local noise level then also allows for the characterization of the estimation bias in local diffusion models (Polzehl and Tabelow 2016), which is in particular important at low SNR.

The R package dti is capable of performing a full analysis of dMRI data and implements a large number of diffusion models for the data, e.g. the DTI model, the diffusion kurtosis model (DKI), and the orientation distribution function. We proposed a computationally feasible and interpretable tensor mixture model for the modelling of dMRI data (Tabelow et al. 2012).

The importance of adequate processing of neuroimaging data for diagnostic sensitivity became obvious in two publications together with colleagues from Universitätsklinikum Münster concerning multiple sclerosis (Deppe et al. 2016) and EHEC (Krämer et al. 2015).

Quantitative MRI with Multi-paramter Mapping

coming soon

Bilevel optimization in medical imaging

In a series of papers (Hintermüller and Rautenberg 2017, Hintermüller et al. 2017, Hintermüller, Papafitsoros, and Rautenberg 2017, Hintermüller et al. 2017b), a new generalized formulation of the renowned total variation regularization was introduced and analyzed. The new regularization functional incorporates a distributed weight function which allows for a varying filter effect depending on local image features (details vs. homogeneous regions). The filter weight is determined automatically through a novel bilevel optimization framework (Hintermüller and Rautenberg 2017, Hintermüller et al. 2017). In this context, the parameterized image reconstruction problem represents the lower level problem, and the upper level problem aims at fixing the filter weight properly. Inspired by an unsupervised learning approach and the statistics of extremes, a localized variance corridor for the image residual is considered and its violation provides a suitable choice for the upper level objective. In the case of Parseval frames, an algorithmic alternative was discussed in Hintermüller et al. 2017b, where instead of the regularizing term, the data fidelity term was weighted and the algorithmic optimization was performed with a surrogate technique. Finally, a detailed study concerning analytical properties of the novel total variation generalization was presented in Hintermüller, Papafitsoros, and Rautenberg 2017.

Bilevel Optimization
Figure 3. - Solutions to a problem of Fourier inpainting arising in parallel magnetic resonance imaging of a chest, where the data are restored by known methods utilizing a) backprojection or b) a scalar weight as well as c) the bilevel approach (from left to right). The spatial distribution of the weight allows to better handle local properties, i.e. homogeneous and detailed regions (subfigure d)).

Structural TV priors in function space

During the recent years, total variation-type functionals, which exploit structural similarity of the reconstruction to some a priori known information, have become increasingly popular. They typically incorporate gradient information in a pointwise fashion. These techniques are particularly relevant in multimodal medical imaging, where for instance, information from one modality e.g., MRI, can be exploited in the reconstruction process of another modality, e.g., PET. In a recently completed project (Hintermüller, Holler, and Papafitsoros 2017) we introduced and analyzed a function space framework for a large class of such structural total variation functionals that are typically used in the above context. This is particularly important, since in function space there is a thorough mathematical description of prominent image features, e.g., edges, which are modelled as discontinuities of functions that typically belong to the space of functions of bounded variation. We defined the structural TV functionals in function space, as appropriate relaxations (lower semicontinuous envelopes). We proved that these relaxations can have a precise integral representation only in certain restrictive cases. However we showed through a general duality result, that formulation of the Tikhonov regularisation problem in function space can still be understood via its equivalence to a corresponding saddle-point formulation, where no knowledge of the precise formulation of the relaxation is needed. Thus, our work allows the function space formulation of a wide class of multimodal medical imaging problems, for instance MR-guided PET reconstruction:

Structural Priors
Figure 4. - Example where there the structural TV functional is appropriately tuned to promote edge alignment of a PET reconstruction to an already reconstructed MRI image. As a result, the edges in the PET reconstruction are more enhanced.

Mathematical framework for Magnetic Resonance Fingerprinting

The ECMath CH12 project Advanced Magnetic Resonance Imaging: Fingerprinting and Geometric Quantication, is focused on the precise mathematization and incorporation of analytical techniques which target to improve modern medical imaging modalities. We are currently developing a mathematical model for Magnetic Resonance Fingerprinting (MRF). MRF is a promising, recently introduced MRI acquisition scheme which allows the simultaneous quantification of the tissue parameters (e.g. T1, T2 and others) using a single acquisition process. The procedure can be summarised as follows: The tissue of interest is excited through a random sequence of pulses without needing to wait for the system to return to equilibrium between pulses. After each pulse, a subset of the signal's Fourier coefficients is collected, as in classical MRI, and a reconstruction of the magnetisation image is performed. These reconstructions suffer from the presence of artefacts since the Fourier coefficients are not fully sampled. The formed sequence of image elements is then compared to a family of predicted sequences (dictionary of fingerprints) each of which corresponds to a specific combination of values of the tissue parameters. This dictionary is computed beforehand by solving the Bloch equations which characterise the dynamics of the magnetization. The idea is that, provided the dictionary is rich enough, every material element (voxel) can be then mapped to its parameter values. This projects focuses on:

  • Mathematical characterization of the MRF process by performing analysis in function space.
  • Further improvement of the quality of the reconstruction of the parameter maps by employing modern non-smooth regularization techniques in the MRF process, see preliminary results in Figure 5.
  • Development of efficient reconstruction algorithms for MRF.

MRF
Figure 5. - Preliminary results on improving the quality of MRF reconstruction. a) Ground truth, b) MRF reconstruction, c) regularized MRF. Left: T1 map, Right: T2 map.

Highlights

Many of the image processing tools especially in the context of neuroimaging are developed in the MATHEON project F10 "Image and signal processing in the biomedical sciences".

Methods developed in this project have been successfully applied in several high-ranked papers, e.g.:

  • Functional MRI of the zebra finch brain during song stimulation suggests a lateralized response topography (Voss et al., PNAS, 2007)
  • Dissociations between behavioral and fMRI-based evaluations of cognitive function after brain injury (Bardin et al., Brain, 2011)

The research activity of many international groups with respect to R and Medical Imaging has been recently summarized in a Special Volume of the Journal of Statistical Software "Magnetic Resonance Imaging in R" vol. 44 (2011) edited by K. Tabelow and B. Whitcher, see also Tabelow et al. 2011.

Software has been developed within the framework of the R Environment for Statistical Computing:

  • adimpro - Adaptive Smoothing of Digital Images
  • dti - DTI/DWI Analysis
  • fmri - Analysis of fMRI Experiments

Further software packages and plugins are

Publications

 Monographs

  • M. Hintermüller, K. Papafitsoros, Chapter 11: Generating Structured Nonsmooth Priors and Associated Primal-dual Methods, in: Processing, Analyzing and Learning of Images, Shapes, and Forms: Part 2, R. Kimmel, X.-Ch. Tai, eds., 20 of Handbook of Numerical Analysis, Elsevier, 2019, pp. 437--502, (Chapter Published), DOI 10.1016/bs.hna.2019.08.001 .

  • J. Polzehl, K. Tabelow, Magnetic Resonance Brain Imaging: Modeling and Data Analysis using R, Series: Use R!, Springer International Publishing, Cham, 2019, 231 pages, (Monograph Published), DOI 10.1007/978-3-030-29184-6 .
    Abstract
    This book discusses the modeling and analysis of magnetic resonance imaging (MRI) data acquired from the human brain. The data processing pipelines described rely on R. The book is intended for readers from two communities: Statisticians who are interested in neuroimaging and looking for an introduction to the acquired data and typical scientific problems in the field; and neuroimaging students wanting to learn about the statistical modeling and analysis of MRI data. Offering a practical introduction to the field, the book focuses on those problems in data analysis for which implementations within R are available. It also includes fully worked examples and as such serves as a tutorial on MRI analysis with R, from which the readers can derive their own data processing scripts. The book starts with a short introduction to MRI and then examines the process of reading and writing common neuroimaging data formats to and from the R session. The main chapters cover three common MR imaging modalities and their data modeling and analysis problems: functional MRI, diffusion MRI, and Multi-Parameter Mapping. The book concludes with extended appendices providing details of the non-parametric statistics used and the resources for R and MRI data.The book also addresses the issues of reproducibility and topics like data organization and description, as well as open data and open science. It relies solely on a dynamic report generation with knitr and uses neuroimaging data publicly available in data repositories. The PDF was created executing the R code in the chunks and then running LaTeX, which means that almost all figures, numbers, and results were generated while producing the PDF from the sources.

  • J. Polzehl, K. Tabelow, Chapter 4: Structural Adaptive Smoothing: Principles and Applications in Imaging, in: Mathematical Methods for Signal and Image Analysis and Representation, L. Florack, R. Duits, G. Jongbloed, M.-C. VAN Lieshout, L. Davies, eds., 41 of Computational Imaging and Vision, Springer, London et al., 2012, pp. 65--81, (Chapter Published).

  • K. Tabelow, B. Whitcher, eds., Magnetic Resonance Imaging in R, 44 of Journal of Statistical Software, American Statistical Association, 2011, 320 pages, (Monograph Published).

 Articles in Refereed Journals

  • Y.Y. Park, J. Polzehl, S. Chatterjee, A. Brechmann, M. Fiecas, Semiparametric modeling of time-varying activation and connectivity in task-based fMRI data, Computational Statistics & Data Analysis, 150 (2020), pp. 107006/1--107006/14, DOI 10.1016/j.csda.2020.107006 .
    Abstract
    In functional magnetic resonance imaging (fMRI), there is a rise in evidence that time-varying functional connectivity, or dynamic functional connectivity (dFC), which measures changes in the synchronization of brain activity, provides additional information on brain networks not captured by time-invariant (i.e., static) functional connectivity. While there have been many developments for statistical models of dFC in resting-state fMRI, there remains a gap in the literature on how to simultaneously model both dFC and time-varying activation when the study participants are undergoing experimental tasks designed to probe at a cognitive process of interest. A method is proposed to estimate dFC between two regions of interest (ROIs) in task-based fMRI where the activation effects are also allowed to vary over time. The proposed method, called TVAAC (time-varying activation and connectivity), uses penalized splines to model both time-varying activation effects and time-varying functional connectivity and uses the bootstrap for statistical inference. Simulation studies show that TVAAC can estimate both static and time-varying activation and functional connectivity, while ignoring time-varying activation effects would lead to poor estimation of dFC. An empirical illustration is provided by applying TVAAC to analyze two subjects from an event-related fMRI learning experiment.

  • J. Polzehl, K. Papafitsoros, K. Tabelow, Patch-wise adaptive weights smoothing in R, Journal of Statistical Software, 95 (2020), pp. 1--27, DOI 10.18637/jss.v095.i06 .
    Abstract
    Image reconstruction from noisy data has a long history of methodological development and is based on a variety of ideas. In this paper we introduce a new method called patch-wise adaptive smoothing, that extends the Propagation-Separation approach by using comparisons of local patches of image intensities to define local adaptive weighting schemes for an improved balance of reduced variability and bias in the reconstruction result. We present the implementation of the new method in an R package aws and demonstrate its properties on a number of examples in comparison with other state-of-the art image reconstruction methods.

  • E.A. Vorontsova, A. Gasnikov, E.A. Gorbunov, P. Dvurechensky, Accelerated gradient-free optimization methods with a non-Euclidean proximal operator, Automation and Remote Control, 80 (2019), pp. 1487--1501.

  • L. Calatroni, K. Papafitsoros, Analysis and automatic parameter selection of a variational model for mixed Gaussian and salt & pepper noise removal, Inverse Problems and Imaging, 35 (2019), pp. 114001/1--114001/37, DOI 10.1088/1361-6420/ab291a .
    Abstract
    We analyse a variational regularisation problem for mixed noise removal that was recently proposed in [14]. The data discrepancy term of the model combines L1 and L2 terms in an infimal convolution fashion and it is appropriate for the joint removal of Gaussian and Salt & Pepper noise. In this work we perform a finer analysis of the model which emphasises on the balancing effect of the two parameters appearing in the discrepancy term. Namely, we study the asymptotic behaviour of the model for large and small values of these parameters and we compare it to the corresponding variational models with L1 and L2 data fidelity. Furthermore, we compute exact solutions for simple data functions taking the total variation as regulariser. Using these theoretical results, we then analytically study a bilevel optimisation strategy for automatically selecting the parameters of the model by means of a training set. Finally, we report some numerical results on the selection of the optimal noise model via such strategy which confirm the validity of our analysis and the use of popular data models in the case of "blind” model selection.

  • A. Gasnikov, P. Dvurechensky, F. Stonyakin, A.A. Titov, An adaptive proximal method for variational inequalities, Computational Mathematics and Mathematical Physics, 59 (2019), pp. 836--841.

  • S. Guminov, Y. Nesterov, P. Dvurechensky, A. Gasnikov, Accelerated primal-dual gradient descent with linesearch for convex, nonconvex, and nonsmooth optimization problems, Doklady Mathematics. Maik Nauka/Interperiodica Publishing, Moscow. English. Translation of the Mathematics Section of: Doklady Akademii Nauk. (Formerly: Russian Academy of Sciences. Doklady. Mathematics)., 99 (2019), pp. 125--128.

  • K. Tabelow, E. Balteau, J. Ashburner, M.F. Callaghan, B. Draganski, G. Helms, F. Kherif, T. Leutritz, A. Lutti, Ch. Phillips, E. Reimer, L. Ruthotto, M. Seif, N. Weiskopf, G. Ziegler, S. Mohammadi, hMRI -- A toolbox for quantitative MRI in neuroscience and clinical research, NeuroImage, 194 (2019), pp. 191--210, DOI 10.1016/j.neuroimage.2019.01.029 .
    Abstract
    Quantitative magnetic resonance imaging (qMRI) finds increasing application in neuroscience and clinical research due to its sensitivity to micro-structural properties of brain tissue, e.g. axon, myelin, iron and water concentration. We introduce the hMRI--toolbox, an easy-to-use open-source tool for handling and processing of qMRI data presented together with an example dataset. This toolbox allows the estimation of high-quality multi-parameter qMRI maps (longitudinal and effective transverse relaxation rates R1 and R2*, proton density PD and magnetisation transfer MT) that can be used for calculation of standard and novel MRI biomarkers of tissue microstructure as well as improved delineation of subcortical brain structures. Embedded in the Statistical Parametric Mapping (SPM) framework, it can be readily combined with existing SPM tools for estimating diffusion MRI parameter maps and benefits from the extensive range of available tools for high-accuracy spatial registration and statistical inference. As such the hMRI--toolbox provides an efficient, robust and simple framework for using qMRI data in neuroscience and clinical research.

  • M. Hintermüller, K. Papafitsoros, C.N. Rautenberg, Analytical aspects of spatially adapted total variation regularisation, Journal of Mathematical Analysis and Applications, 454 (2017), pp. 891--935, DOI 10.1016/j.jmaa.2017.05.025 .
    Abstract
    In this paper we study the structure of solutions of the one dimensional weighted total variation regularisation problem, motivated by its application in signal recovery tasks. We study in depth the relationship between the weight function and the creation of new discontinuities in the solution. A partial semigroup property relating the weight function and the solution is shown and analytic solutions for simply data functions are computed. We prove that the weighted total variation minimisation problem is well-posed even in the case of vanishing weight function, despite the lack of coercivity. This is based on the fact that the total variation of the solution is bounded by the total variation of the data, a result that it also shown here. Finally the relationship to the corresponding weighted fidelity problem is explored, showing that the two problems can produce completely different solutions even for very simple data functions.

  • M. Hintermüller, C.N. Rautenberg, S. Rösel, Density of convex intersections and applications, Proceedings of the Royal Society of Edinburgh. Section A. Mathematics, 473 (2017), pp. 20160919/1--20160919/28, DOI 10.1098/rspa.2016.0919 .
    Abstract
    In this paper we address density properties of intersections of convex sets in several function spaces. Using the concept of Gamma-convergence, it is shown in a general framework, how these density issues naturally arise from the regularization, discretization or dualization of constrained optimization problems and from perturbed variational inequalities. A variety of density results (and counterexamples) for pointwise constraints in Sobolev spaces are presented and the corresponding regularity requirements on the upper bound are identified. The results are further discussed in the context of finite element discretizations of sets associated to convex constraints. Finally, two applications are provided, which include elasto-plasticity and image restoration problems.

  • M. Hintermüller, C.N. Rautenberg, T. Wu, A. Langer, Optimal selection of the regularization function in a generalized total variation model. Part II: Algorithm, its analysis and numerical tests, Journal of Mathematical Imaging and Vision, 59 (2017), pp. 515--533.
    Abstract
    Based on the generalized total variation model and its analysis pursued in part I (WIAS Preprint no. 2235), in this paper a continuous, i.e., infinite dimensional, projected gradient algorithm and its convergence analysis are presented. The method computes a stationary point of a regularized bilevel optimization problem for simultaneously recovering the image as well as determining a spatially distributed regularization weight. Further, its numerical realization is discussed and results obtained for image denoising and deblurring as well as Fourier and wavelet inpainting are reported on.

  • M. Hintermüller, C.N. Rautenberg, Optimal selection of the regularization function in a weighted total variation model. Part I: Modeling and theory, Journal of Mathematical Imaging and Vision, 59 (2017), pp. 498--514.
    Abstract
    Based on the generalized total variation model and its analysis pursued in part I (WIAS Preprint no. 2235), in this paper a continuous, i.e., infinite dimensional, projected gradient algorithm and its convergence analysis are presented. The method computes a stationary point of a regularized bilevel optimization problem for simultaneously recovering the image as well as determining a spatially distributed regularization weight. Further, its numerical realization is discussed and results obtained for image denoising and deblurring as well as Fourier and wavelet inpainting are reported on.

  • M. Deppe, K. Tabelow, J. Krämer, J.-G. Tenberge, P. Schiffler, S. Bittner, W. Schwindt, F. Zipp, H. Wiendl, S.G. Meuth, Evidence for early, non-lesional cerebellar damage in patients with multiple sclerosis: DTI measures correlate with disability, atrophy, and disease duration, Multiple Sclerosis Journal, 22 (2016), pp. 73--84, DOI 10.1177/1352458515579439 .

  • K. Schildknecht, K. Tabelow, Th. Dickhaus, More specific signal detection in functional magnetic resonance imaging by false discovery rate control for hierarchically structured systems of hypotheses, PLOS ONE, 11 (2016), pp. e0149016/1--e0149016/21, DOI 10.1371/journal.pone.0149016 .

  • H.U. Voss, J.P. Dyke, K. Tabelow, N. Schiff, D. Ballon, Magnetic resonance advection imaging of cerebrovascular pulse dynamics, Journal of Cerebral Blood Flow and Metabolism, 37 (2017), pp. 1223--1235 (published online on 24.05.2016), DOI 10.1177/0271678x16651449 .

  • M. Deliano, K. Tabelow, R. König, J. Polzehl, Improving accuracy and temporal resolution of learning curve estimation for within- and across-session analysis, PLOS ONE, 11 (2016), pp. e0157355/1--e0157355/23, DOI 10.1371/journal.pone.0157355 .
    Abstract
    Estimation of learning curves is ubiquitously based on proportions of correct responses within moving trial windows. In this approach, it is tacitly assumed that learning performance is constant within the moving windows, which, however, is often not the case. In the present study we demonstrate that violations of this assumption lead to systematic errors in the analysis of learning curves, and we explored the dependency of these errors on window size, different statistical models, and learning phase. To reduce these errors for single subjects as well as on the population level, we propose adequate statistical methods for the estimation of learning curves and the construction of confidence intervals, trial by trial. Applied to data from a shuttle-box avoidance experiment with Mongolian gerbils, our approach revealed performance changes occurring at multiple temporal scales within and across training sessions which were otherwise obscured in the conventional analysis. The proper assessment of the behavioral dynamics of learning at a high temporal resolution clarified and extended current descriptions of the process of avoidance learning. It further disambiguated the interpretation of neurophysiological signal changes recorded during training in relation to learning.

  • J. Polzehl, K. Tabelow, Low SNR in diffusion MRI models, Journal of the American Statistical Association, 111 (2016), pp. 1480--1490, DOI 10.1080/01621459.2016.1222284 .
    Abstract
    Noise is a common issue for all magnetic resonance imaging (MRI) techniques such as diffusion MRI and obviously leads to variability of the estimates in any model describing the data. Increasing spatial resolution in MR experiments further diminish the signal-to-noise ratio (SNR). However, with low SNR the expected signal deviates from the true value. Common modeling approaches therefore lead to a bias in estimated model parameters. Adjustments require an analysis of the data generating process and a characterization of the resulting distribution of the imaging data. We provide an adequate quasi-likelihood approach that employs these characteristics. We elaborate on the effects of typical data preprocessing and analyze the bias effects related to low SNR for the example of the diffusion tensor model in diffusion MRI. We then demonstrate the relevance of the problem using data from the Human Connectome Project.

  • K. Tabelow, S. Mohammadi, N. Weiskopf, J. Polzehl, POAS4SPM --- A toolbox for SPM to denoise diffusion MRI data, Neuroinformatics, 13 (2015), pp. 19--29.
    Abstract
    We present an implementation of a recently developed noise reduction algorithm for dMRI data, called multi-shell position orientation adaptive smoothing (msPOAS), as a toolbox for SPM. The method intrinsically adapts to the structures of different size and shape in dMRI and hence avoids blurring typically observed in non-adaptive smoothing. We give examples for the usage of the toolbox and explain the determination of experiment-dependent parameters for an optimal performance of msPOAS.

  • K. Tabelow, H.U. Voss, J. Polzehl, Local estimation of the noise level in MRI using structural adaptation, Medical Image Analysis, 20 (2015), pp. 76--86.
    Abstract
    We present a method for local estimation of the signal-dependent noise level in magnetic resonance images. The procedure uses a multi-scale approach to adaptively infer on local neighborhoods with similar data distribution. It exploits a maximum-likelihood estimator for the local noise level. The validity of the method was evaluated on repeated diffusion data of a phantom and simulated data using T1-data corrupted with artificial noise. Simulation results are compared with a recently proposed estimate. The method was applied to a high-resolution diffusion dataset to obtain improved diffusion model estimation results and to demonstrate its usefulness in methods for enhancing diffusion data.

  • J. Krämer, M. Deppe, K. Göbel, K. Tabelow, H. Wiendl, S.G. Meuth, Recovery of thalamic microstructural damage after Shiga toxin 2-associated hemolytic-uremic syndrome, Journal of the Neurological Sciences, 356 (2015), pp. 175--183.

  • S. Mohammadi, K. Tabelow, L. Ruthotto, Th. Feiweier, J. Polzehl, N. Weiskopf, High-resolution diffusion kurtosis imaging at 3T enabled by advanced post-processing, Frontiers in Neuroscience, 8 (2015), pp. 427/1--427/14.

  • S. Becker, K. Tabelow, S. Mohammadi, N. Weiskopf, J. Polzehl, Adaptive smoothing of multi-shell diffusion-weighted magnetic resonance data by msPOAS, NeuroImage, 95 (2014), pp. 90--105.
    Abstract
    In this article we present a noise reduction method (msPOAS) for multi-shell diffusion-weighted magnetic resonance data. To our knowledge, this is the first smoothing method which allows simultaneous smoothing of all q-shells. It is applied directly to the diffusion weighted data and consequently allows subsequent analysis by any model. Due to its adaptivity, the procedure avoids blurring of the inherent structures and preserves discontinuities. MsPOAS extends the recently developed position-orientation adaptive smoothing (POAS) procedure to multi-shell experiments. At the same time it considerably simplifies and accelerates the calculations. The behavior of the algorithm msPOAS is evaluated on diffusion-weighted data measured on a single shell and on multiple shells.

  • M. Welvaert, K. Tabelow, R. Seurinck, Y. Rosseel, Adaptive smoothing as inference strategy: More specificity for unequally sized or neighboring regions, Neuroinformatics, 11 (2013), pp. 435--445.
    Abstract
    Although spatial smoothing of fMRI data can serve multiple purposes, increasing the sensitivity of activation detection is probably its greatest benefit. However, this increased detection power comes with a loss of specificity when non-adaptive smoothing (i.e. the standard in most software packages) is used. Simulation studies and analysis of experimental data was performed using the R packages neuRosim and fmri. In these studies, we systematically investigated the effect of spatial smoothing on the power and number of false positives in two particular cases that are often encountered in fMRI research: (1) Single condition activation detection for regions that differ in size, and (2) multiple condition activation detection for neighbouring regions. Our results demonstrate that adaptive smoothing is superior in both cases because less false positives are introduced by the spatial smoothing process compared to standard Gaussian smoothing or FDR inference of unsmoothed data.

  • S. Becker, K. Tabelow, H.U. Voss, A. Anwander, R.M. Heidemann, J. Polzehl, Position-orientation adaptive smoothing of diffusion weighted magnetic resonance data (POAS), Medical Image Analysis, 16 (2012), pp. 1142--1155.
    Abstract
    We introduce an algorithm for diffusion weighted magnetic resonance imaging data enhancement based on structural adaptive smoothing in both space and diffusion direction. The method, called POAS, does not refer to a specific model for the data, like the diffusion tensor or higher order models. It works by embedding the measurement space into a space with defined metric and group operations, in this case the Lie group of three-dimensional Euclidean motion SE(3). Subsequently, pairwise comparisons of the values of the diffusion weighted signal are used for adaptation. The position-orientation adaptive smoothing preserves the edges of the observed fine and anisotropic structures. The POAS-algorithm is designed to reduce noise directly in the diffusion weighted images and consequently also to reduce bias and variability of quantities derived from the data for specific models. We evaluate the algorithm on simulated and experimental data and demonstrate that it can be used to reduce the number of applied diffusion gradients and hence acquisition time while achieving similar quality of data, or to improve the quality of data acquired in a clinically feasible scan time setting.

  • K. Tabelow, H.U. Voss, J. Polzehl, Modeling the orientation distribution function by mixtures of angular central Gaussian distributions, Journal of Neuroscience Methods, 203 (2012), pp. 200--211.
    Abstract
    In this paper we develop a tensor mixture model for diffusion weighted imaging data using an automatic model selection criterion for the order of tensor components in a voxel. We show that the weighted orientation distribution function for this model can be expanded into a mixture of angular central Gaussian distributions. We show properties of this model in extensive simulations and in a high angular resolution experimental data set. The results suggest that the model may improve imaging of cerebral fiber tracts. We demonstrate how inference on canonical model parameters may give rise to new clinical applications.

  • K. Tabelow, J.D. Clayden, P. Lafaye DE Micheaux, J. Polzehl, V.J. Schmid, B. Whitcher, Image analysis and statistical inference in neuroimaging with R, NeuroImage, 55 (2011), pp. 1686--1693.
    Abstract
    R is a language and environment for statistical computing and graphics. It can be considered an alternative implementation of the S language developed in the 1970s and 1980s for data analysis and graphics (Becker and Chambers, 1984; Becker et al., 1988). The R language is part of the GNU project and offers versions that compile and run on almost every major operating system currently available. We highlight several R packages built specifically for the analysis of neuroimaging data in the context of functional MRI, diffusion tensor imaging, and dynamic contrast-enhanced MRI. We review their methodology and give an overview of their capabilities for neuroimaging. In addition we summarize some of the current activities in the area of neuroimaging software development in R.

  • K. Tabelow, J. Polzehl, Statistical parametric maps for functional MRI experiments in R: The package fmri, Journal of Statistical Software, 44 (2011), pp. 1--21.
    Abstract
    The package fmri is provided for analysis of single run functional Magnetic Resonance Imaging data. It implements structural adaptive smoothing methods with signal detection for adaptive noise reduction which avoids blurring of edges of activation areas. fmri provides fmri analysis from time series modeling to signal detection and publication-ready images.

  • J. Bardin, J. Fins, D. Katz, J. Hersh, L. Heier, K. Tabelow, J. Dyke, D. Ballon, N. Schiff, H. Voss, Dissociations between behavioral and fMRI-based evaluations of cognitive function after brain injury, Brain, 134 (2011), pp. 769--782.
    Abstract
    Functional neuroimaging methods hold promise for the identification of cognitive function and communication capacity in some severely brain-injured patients who may not retain sufficient motor function to demonstrate their abilities. We studied seven severely brain-injured patients and a control group of 14 subjects using a novel hierarchical functional magnetic resonance imaging assessment utilizing mental imagery responses. Whereas the control group showed consistent and accurate (for communication) blood-oxygen-level-dependent responses without exception, the brain-injured subjects showed a wide variation in the correlation of blood-oxygen-level-dependent responses and overt behavioural responses. Specifically, the brain-injured subjects dissociated bedside and functional magnetic resonance imaging-based command following and communication capabilities. These observations reveal significant challenges in developing validated functional magnetic resonance imaging-based methods for clinical use and raise interesting questions about underlying brain function assayed using these methods in brain-injured subjects.

  • J. Polzehl, K. Tabelow, Beyond the Gaussian model in diffussion-weighted imaging: The package dti, Journal of Statistical Software, 44 (2011), pp. 1--26.
    Abstract
    Diffusion weighted imaging is a magnetic resonance based method to investigate tissue micro-structure especially in the human brain via water diffusion. Since the standard diffusion tensor model for the acquired data failes in large portion of the brain voxel more sophisticated models have bee developed. Here, we report on the package dti and how some of these models can be used with the package.

  • E. Diederichs, A. Juditsky, V. Spokoiny, Ch. Schütte, Sparse non-Gaussian component analysis, IEEE Transactions on Information Theory, 56 (2010), pp. 3033--3047.

  • J. Polzehl, H.U. Voss, K. Tabelow, Structural adaptive segmentation for statistical parametric mapping, NeuroImage, 52 (2010), pp. 515--523.
    Abstract
    Functional Magnetic Resonance Imaging inherently involves noisy measurements and a severe multiple test problem. Smoothing is usually used to reduce the effective number of multiple comparisons and to locally integrate the signal and hence increase the signal-to-noise ratio. Here, we provide a new structural adaptive segmentation algorithm (AS) that naturally combines the signal detection with noise reduction in one procedure. Moreover, the new method is closely related to a recently proposed structural adaptive smoothing algorithm and preserves shape and spatial extent of activation areas without blurring the borders.

  • K. Tabelow, V. Piëch, J. Polzehl, H.U. Voss, High-resolution fMRI: Overcoming the signal-to-noise problem, Journal of Neuroscience Methods, 178 (2009), pp. 357--365.
    Abstract
    Increasing the spatial resolution in functional Magnetic Resonance Imaging (fMRI) inherently lowers the signal-to-noise ratio (SNR). In order to still detect functionally significant activations in high-resolution images, spatial smoothing of the data is required. However, conventional non-adaptive smoothing comes with a reduced effective resolution, foiling the benefit of the higher acquisition resolution. We show how our recently proposed structural adaptive smoothing procedure for functional MRI data can improve signal detection of high-resolution fMRI experiments regardless of the lower SNR. The procedure is evaluated on human visual and sensory-motor mapping experiments. In these applications, the higher resolution could be fully utilized and high-resolution experiments were outperforming normal resolution experiments by means of both statistical significance and information content.

  • J. Polzehl, K. Tabelow, Structural adaptive smoothing in diffusion tensor imaging: The R package dti, Journal of Statistical Software, 31 (2009), pp. 1--24.
    Abstract
    Diffusion Weighted Imaging has become and will certainly continue to be an important tool in medical research and diagnostics. Data obtained with Diffusion Weighted Imaging are characterized by a high noise level. Thus, estimation of quantities like anisotropy indices or the main diffusion direction may be significantly compromised by noise in clinical or neuroscience applications. Here, we present a new package dti for R, which provides functions for the analysis of diffusion weighted data within the diffusion tensor model. This includes smoothing by a recently proposed structural adaptive smoothing procedure based on the Propagation-Separation approach in the context of the widely used Diffusion Tensor Model. We extend the procedure and show, how a correction for Rician bias can be incorporated. We use a heteroscedastic nonlinear regression model to estimate the diffusion tensor. The smoothing procedure naturally adapts to different structures of different size and thus avoids oversmoothing edges and fine structures. We illustrate the usage and capabilities of the package through some examples.

  • K. Tabelow, J. Polzehl, A.M. Uluğ, J.P. Dyke, R. Watts, L.A. Heier, H.U. Voss, Accurate localization of brain activity in presurgical fMRI by structure adaptive smoothing, IEEE Transactions on Medical Imaging, 27 (2008), pp. 531--537.
    Abstract
    An important problem of the analysis of fMRI experiments is to achieve some noise reduction of the data without blurring the shape of the activation areas. As a novel solution to this problem, the Propagation-Separation approach (PS), a structure adaptive smoothing method, has been proposed recently. PS adapts to different shapes of activation areas by generating a spatial structure corresponding to similarities and differences between time series in adjacent locations. In this paper we demonstrate how this method results in more accurate localization of brain activity. First, it is shown in numerical simulations that PS is superior over Gaussian smoothing with respect to the accurate description of the shape of activation clusters and and results in less false detections. Second, in a study of 37 presurgical planning cases we found that PS and Gaussian smoothing often yield different results, and we present examples showing aspects of the superiority of PS as applied to presurgical planning.

  • K. Tabelow, J. Polzehl, V. Spokoiny, H.U. Voss, Diffusion tensor imaging: Structural adaptive smoothing, NeuroImage, 39 (2008), pp. 1763--1773.
    Abstract
    Diffusion Tensor Imaging (DTI) data is characterized by a high noise level. Thus, estimation errors of quantities like anisotropy indices or the main diffusion direction used for fiber tracking are relatively large and may significantly confound the accuracy of DTI in clinical or neuroscience applications. Besides pulse sequence optimization, noise reduction by smoothing the data can be pursued as a complementary approach to increase the accuracy of DTI. Here, we suggest an anisotropic structural adaptive smoothing procedure, which is based on the Propagation-Separation method and preserves the structures seen in DTI and their different sizes and shapes. It is applied to artificial phantom data and a brain scan. We show that this method significantly improves the quality of the estimate of the diffusion tensor and hence enables one either to reduce the number of scans or to enhance the input for subsequent analysis such as fiber tracking.

  • D. Divine, J. Polzehl, F. Godtliebsen, A propagation-separation approach to estimate the autocorrelation in a time-series, Nonlinear Processes in Geophysics, 15 (2008), pp. 591--599.

  • V. Katkovnik, V. Spokoiny, Spatially adaptive estimation via fitted local likelihood techniques, IEEE Transactions on Signal Processing, 56 (2008), pp. 873--886.
    Abstract
    This paper offers a new technique for spatially adaptive estimation. The local likelihood is exploited for nonparametric modelling of observations and estimated signals. The approach is based on the assumption of a local homogeneity of the signal: for every point there exists a neighborhood in which the signal can be well approximated by a constant. The fitted local likelihood statistics is used for selection of an adaptive size of this neighborhood. The algorithm is developed for quite a general class of observations subject to the exponential distribution. The estimated signal can be uni- and multivariable. We demonstrate a good performance of the new algorithm for Poissonian image denoising and compare of the new method versus the intersection of confidence interval (ICI) technique that also exploits a selection of an adaptive neighborhood for estimation.

  • O. Minet, H. Gajewski, J.A. Griepentrog, J. Beuthan, The analysis of laser light scattering during rheumatoid arthritis by image segmentation, Laser Physics Letters, 4 (2007), pp. 604--610.

  • H.U. Voss, K. Tabelow, J. Polzehl, O. Tchernichovski, K. Maul, D. Salgado-Commissariat, D. Ballon, S.A. Helekar, Functional MRI of the zebra finch brain during song stimulation suggests a lateralized response topography, Proceedings of the National Academy of Sciences of the United States of America, 104 (2007), pp. 10667--10672.
    Abstract
    Electrophysiological and activity-dependent gene expression studies of birdsong have contributed to the understanding of the neural representation of natural sounds. However, we have limited knowledge about the overall spatial topography of song representation in the avian brain. Here, we adapt the noninvasive functional MRI method in mildly sedated zebra finches (Taeniopygia guttata) to localize and characterize song driven brain activation. Based on the blood oxygenation level-dependent signal, we observed a differential topographic responsiveness to playback of bird's own song, tutor song, conspecific song, and a pure tone as a nonsong stimulus. The bird's own song caused a stronger response than the tutor song or tone in higher auditory areas. This effect was more pronounced in the medial parts of the forebrain. We found left-right hemispheric asymmetry in sensory responses to songs, with significant discrimination between stimuli observed only in the right hemisphere. This finding suggests that perceptual responses might be lateralized in zebra finches. In addition to establishing the feasibility of functional MRI in sedated songbirds, our results demonstrate spatial coding of song in the zebra finch forebrain, based on developmental familiarity and experience.

  • J. Polzehl, K. Tabelow, Adaptive smoothing of digital images: The R package adimpro, Journal of Statistical Software, 19 (2007), pp. 1--17.
    Abstract
    Digital imaging has become omnipresent in the past years with a bulk of applications ranging from medical imaging to photography. When pushing the limits of resolution and sensitivity noise has ever been a major issue. However, commonly used non-adaptive filters can do noise reduction at the cost of a reduced effective spatial resolution only. Here we present a new package adimpro for R, which implements the Propagation-Separation approach by Polzehl and Spokoiny (2006) for smoothing digital images. This method naturally adapts to different structures of different size in the image and thus avoids oversmoothing edges and fine structures. We extend the method for imaging data with spatial correlation. Furthermore we show how the estimation of the dependence between variance and mean value can be included. We illustrate the use of the package through some examples.

  • J. Polzehl, K. Tabelow, fmri: A package for analyzing fmri data, Newsletter of the R Project for Statistical Computing, 7 (2007), pp. 13--17.

  • K. Tabelow, J. Polzehl, H.U. Voss, V. Spokoiny, Analyzing fMRI experiments with structural adaptive smoothing procedures, NeuroImage, 33 (2006), pp. 55--62.
    Abstract
    Data from functional magnetic resonance imaging (fMRI) consists of time series of brain images which are characterized by a low signal-to-noise ratio. In order to reduce noise and to improve signal detection the fMRI data is spatially smoothed. However, the common application of a Gaussian filter does this at the cost of loss of information on spatial extent and shape of the activation area. We suggest to use the propagation-separation procedures introduced by Polzehl and Spokoiny (2006) instead. We show that this significantly improves the information on the spatial extent and shape of the activation region with similar results for the noise reduction. To complete the statistical analysis, signal detection is based on thresholds defined by random field theory. Effects of ad aptive and non-adaptive smoothing are illustrated by artificial examples and an analysis of experimental data.

  • G. Blanchard, M. Kawanabe, M. Sugiyama, V. Spokoiny, K.-R. Müller, In search of non-Gaussian components of a high-dimensional distribution, Journal of Machine Learning Research (JMLR). MIT Press, Cambridge, MA. English, English abstracts., 7 (2006), pp. 247--282.
    Abstract
    Finding non-Gaussian components of high-dimensional data is an important preprocessing step for efficient information processing. This article proposes a new em linear method to identify the “non-Gaussian subspace” within a very general semi-parametric framework. Our proposed method, called NGCA (Non-Gaussian Component Analysis), is essentially based on the fact that we can construct a linear operator which, to any arbitrary nonlinear (smooth) function, associates a vector which belongs to the low dimensional non-Gaussian target subspace up to an estimation error. By applying this operator to a family of different nonlinear functions, one obtains a family of different vectors lying in a vicinity of the target space. As a final step, the target space itself is estimated by applying PCA to this family of vectors. We show that this procedure is consistent in the sense that the estimaton error tends to zero at a parametric rate, uniformly over the family. Numerical examples demonstrate the usefulness of our method.

  • H. Gajewski, J.A. Griepentrog, A descent method for the free energy of multicomponent systems, Discrete and Continuous Dynamical Systems, 15 (2006), pp. 505--528.

  • A. Goldenshluger, V. Spokoiny, Recovering convex edges of image from noisy tomographic data, IEEE Transactions on Information Theory, 52 (2006), pp. 1322--1334.

  • J. Polzehl, V. Spokoiny, Propagation-separation approach for local likelihood estimation, Probability Theory and Related Fields, 135 (2006), pp. 335--362.
    Abstract
    The paper presents a unified approach to local likelihood estimation for a broad class of nonparametric models, including, e.g., regression, density, Poisson and binary response models. The method extends the adaptive weights smoothing (AWS) procedure introduced by the authors [Adaptive weights smoothing with applications to image sequentation. J. R. Stat. Soc., Ser. B 62, 335-354 (2000)] in the context of image denoising. The main idea of the method is to describe a greatest possible local neighborhood of every design point in which the local parametric assumption is justified by the data. The method is especially powerful for model functions having large homogeneous regions and sharp discontinuities. The performance of the proposed procedure is illustrated by numerical examples for density estimation and classification. We also establish some remarkable theoretical non-asymptotic results on properties of the new algorithm. This includes the “propagation” property which particularly yields the root-$n$ consistency of the resulting estimate in the homogeneous case. We also state an “oracle” result which implies rate optimality of the estimate under usual smoothness conditions and a “separation” result which explains the sensitivity of the method to structural changes.

  • J. Griepentrog, On the unique solvability of a nonlocal phase separation problem for multicomponent systems, Banach Center Publications, 66 (2004), pp. 153-164.

  • A. Goldenshluger, V. Spokoiny, On the shape-from-moments problem and recovering edges from noisy Radon data, Probability Theory and Related Fields, 128 (2004), pp. 123--140.

  • J. Polzehl, V. Spokoiny, Image denoising: Pointwise adaptive approach, The Annals of Statistics, 31 (2003), pp. 30--57.
    Abstract
    A new method of pointwise adaptation has been proposed and studied in Spokoiny (1998) in context of estimation of piecewise smooth univariate functions. The present paper extends that method to estimation of bivariate grey-scale images composed of large homogeneous regions with smooth edges and observed with noise on a gridded design. The proposed estimator $, hatf(x) ,$ at a point $, x ,$ is simply the average of observations over a window $, hatU(x) ,$ selected in a data-driven way. The theoretical properties of the procedure are studied for the case of piecewise constant images. We present a nonasymptotic bound for the accuracy of estimation at a specific grid point $, x ,$ as a function of the number of pixel $n$, of the distance from the point of estimation to the closest boundary and of smoothness properties and orientation of this boundary. It is also shown that the proposed method provides a near optimal rate of estimation near edges and inside homogeneous regions. We briefly discuss algorithmic aspects and the complexity of the procedure. The numerical examples demonstrate a reasonable performance of the method and they are in agreement with the theoretical issues. An example from satellite (SAR) imaging illustrates the applicability of the method.

  • J. Polzehl, V. Spokoiny, Functional and dynamic Magnetic Resonance Imaging using vector adaptive weights smoothing, Journal of the Royal Statistical Society. Series C. Applied Statistics, 50 (2001), pp. 485--501.
    Abstract
    We consider the problem of statistical inference for functional and dynamic Magnetic Resonance Imaging (MRI). A new approach is proposed which extends the adaptive weights smoothing (AWS) procedure from Polzehl and Spokoiny (2000) originally designed for image denoising. We demonstrate how the AWS method can be applied for time series of images, which typically occur in functional and dynamic MRI. It is shown how signal detection in functional MRI and analysis of dynamic MRI can benefit from spatially adaptive smoothing. The performance of the procedure is illustrated using real and simulated data.

  • J. Polzehl, V. Spokoiny, Adaptive Weights Smoothing with applications to image restoration, Journal of the Royal Statistical Society. Series B. Statistical Methodology, 62 (2000), pp. 335--354.
    Abstract
    We propose a new method of nonparametric estimation which is based on locally constant smoothing with an adaptive choice of weights for every pair of data-points. Some theoretical properties of the procedure are investigated. Then we demonstrate the performance of the method on some simulated univariate and bivariate examples and compare it with other nonparametric methods. Finally we discuss applications of this procedure to magnetic resonance and satellite imaging.

 Contributions to Collected Editions

  • N. Tupitsa, A. Gasnikov, P. Dvurechensky, S. Guminov, Strongly convex optimization for the dual formulation of optimal transport, in: Mathematical optimization theory and operations research, A. Kononov, M. Khachay, V.A. Kalyagin, P. Pardalos, eds., 1275 of Theoretical Computer Science and General Issues, Springer International Publishing AG, Cham, 2020, pp. 192--204, DOI 10.1007/978-3-030-58657-7_17 .
    Abstract
    In this paper we experimentally check a hypothesis, that dual problem to discrete entropy regularized optimal transport problem possesses strong convexity on a certain compact set. We present a numerical estimation technique of parameter of strong convexity and show that such an estimate increases the performance of an accelerated alternating minimization algorithm for strongly convex functions applied to the considered problem.

  • D. Dvinskikh, E. Gorbunov, A. Gasnikov, A. Dvurechensky, C.A. Uribe, On primal and dual approaches for distributed stochastic convex optimization over networks, in: 2019 IEEE 58th Conference on Decision and Control (CDC), IEEE Xplore, 2020, pp. 7435--7440, DOI 10.1109/CDC40024.2019 .
    Abstract
    We introduce a primal-dual stochastic gradient oracle method for distributed convex optimization problems over networks. We show that the proposed method is optimal in terms of communication steps. Additionally, we propose a new analysis method for the rate of convergence in terms of duality gap and probability of large deviations. This analysis is based on a new technique that allows to bound the distance between the iteration sequence and the optimal point. By the proper choice of batch size, we can guarantee that this distance equals (up to a constant) to the distance between the starting point and the solution.

  • P. Dvurechensky, A. Gasnikov, S. Omelchenko, A. Tiurin, A stable alternative to Sinkhorn's algorithm for regularized optimal transport, in: Mathematical optimization theory and operations research, A. Kononov, M. Khachay, V.A. Kalyagin, P. Pardalos, eds., Theoretical Computer Science and General Issues, Springer International Publishing, Basel, 2020, pp. 406--423, DOI 10.1007/978-3-030-49988-4 .

  • F. Stonyakin, D. Dvinskikh, P. Dvurechensky, A. Kroshnin, O. Kuznetsova, A. Agafonov, A. Gasnikov, A. Tyurin, C.A. Uribe, D. Pasechnyuk, S. Artamonov, Gradient methods for problems with inexact model of the objective, in: Proceedings of the 18th International Conference on Mathematical Optimization Theory and Operations Research (MOTOR 2019), M. Khachay, Y. Kochetov, P. Pardalos, eds., 11548 of Lecture Notes in Computer Science, Springer Nature Switzerland AG 2019, Cham, Switzerland, 2019, pp. 97--114, DOI 10.1007/978-3-030-22629-9_8 .
    Abstract
    We consider optimization methods for convex minimization problems under inexact information on the objective function. We introduce inexact model of the objective, which as a particular cases includes inexact oracle [16] and relative smoothness condition [36]. We analyze gradient method which uses this inexact model and obtain convergence rates for convex and strongly convex problems. To show potential applications of our general framework we consider three particular problems. The first one is clustering by electorial model introduced in [41]. The second one is approximating optimal transport distance, for which we propose a Proximal Sinkhorn algorithm. The third one is devoted to approximating optimal transport barycenter and we propose a Proximal Iterative Bregman Projections algorithm. We also illustrate the practical performance of our algorithms by numerical experiments.

  • M. Hintermüller, A. Langer, C.N. Rautenberg, T. Wu, Adaptive regularization for image reconstruction from subsampled data, in: Imaging, Vision and Learning Based on Optimization and PDEs IVLOPDE, Bergen, Norway, August 29 -- September 2, 2016, X.-Ch. Tai, E. Bae, M. Lysaker, eds., Mathematics and Visualization, Springer International Publishing, Berlin, 2018, pp. 3--26, DOI 10.1007/978-3-319-91274-5 .
    Abstract
    Choices of regularization parameters are central to variational methods for image restoration. In this paper, a spatially adaptive (or distributed) regularization scheme is developed based on localized residuals, which properly balances the regularization weight between regions containing image details and homogeneous regions. Surrogate iterative methods are employed to handle given subsampled data in transformed domains, such as Fourier or wavelet data. In this respect, this work extends the spatially variant regularization technique previously established in [15], which depends on the fact that the given data are degraded images only. Numerical experiments for the reconstruction from partial Fourier data and for wavelet inpainting prove the efficiency of the newly proposed approach.

  • N. Buzun, A. Suvorikova, V. Spokoiny, Multiscale parametric approach for change point detection, in: Proceedings of Information Technology and Systems 2016 -- The 40th Interdisciplinary Conference & School, Institute for Information Transmission Problems (Kharkevich Institute), Moscow, pp. 979--996.

  • K. Tabelow, J. Polzehl, SHOWCASE 21 -- Towards in-vivo histology, in: MATHEON -- Mathematics for Key Technologies, M. Grötschel, D. Hömberg, J. Sprekels, V. Mehrmann ET AL., eds., 1 of EMS Series in Industrial and Applied Mathematics, European Mathematical Society Publishing House, Zurich, 2014, pp. 378--379.

  • H. Lamecker, H.-Ch. Hege, K. Tabelow, J. Polzehl, F2 -- Image processing, in: MATHEON -- Mathematics for Key Technologies, M. Grötschel, D. Hömberg, J. Sprekels, V. Mehrmann ET AL., eds., 1 of EMS Series in Industrial and Applied Mathematics, European Mathematical Society Publishing House, Zurich, 2014, pp. 359--376.

  • K. Tabelow, Viele Tests --- viele Fehler, in: Besser als Mathe --- Moderne angewandte Mathematik aus dem MATHEON zum Mitmachen, K. Biermann, M. Grötschel, B. Lutz-Westphal, eds., Reihe: Populär, Vieweg+Teubner, Wiesbaden, 2010, pp. 117--120.

  • H. Gajewski, J.A. Griepentrog, A. Mielke, J. Beuthan, U. Zabarylo, O. Minet, Image segmentation for the investigation of scattered-light images when laser-optically diagnosing rheumatoid arthritis, in: Mathematics -- Key Technology for the Future, W. Jäger, H.-J. Krebs, eds., Springer, Heidelberg, 2008, pp. 149--161.

 Preprints, Reports, Technical Reports

  • A. Ivanova, A. Gasnikov, P. Dvurechensky, D. Dvinskikh, A. Tyurin, E. Vorontsova, D. Pasechnyuk, Oracle complexity separation in convex optimization, Preprint no. 2711, WIAS, Berlin, 2020, DOI 10.20347/WIAS.PREPRINT.2711 .
    Abstract, PDF (424 kByte)
    Ubiquitous in machine learning regularized empirical risk minimization problems are often composed of several blocks which can be treated using different types of oracles, e.g., full gradient, stochastic gradient or coordinate derivative. Optimal oracle complexity is known and achievable separately for the full gradient case, the stochastic gradient case, etc. We propose a generic framework to combine optimal algorithms for different types of oracles in order to achieve separate optimal oracle complexity for each block, i.e. for each block the corresponding oracle is called the optimal number of times for a given accuracy. As a particular example, we demonstrate that for a combination of a full gradient oracle and either a stochastic gradient oracle or a coordinate descent oracle our approach leads to the optimal number of oracle calls separately for the full gradient part and the stochastic/coordinate descent part.

  • D. Kamzolov, A. Gasnikov, P. Dvurechensky, On the optimal combination of tensor optimization methods, Preprint no. 2710, WIAS, Berlin, 2020, DOI 10.20347/WIAS.PREPRINT.2710 .
    Abstract, PDF (284 kByte)
    We consider the minimization problem of a sum of a number of functions having Lipshitz p -th order derivatives with different Lipschitz constants. In this case, to accelerate optimization, we propose a general framework allowing to obtain near-optimal oracle complexity for each function in the sum separately, meaning, in particular, that the oracle for a function with lower Lipschitz constant is called a smaller number of times. As a building block, we extend the current theory of tensor methods and show how to generalize near-optimal tensor methods to work with inexact tensor step. Further, we investigate the situation when the functions in the sum have Lipschitz derivatives of a different order. For this situation, we propose a generic way to separate the oracle complexity between the parts of the sum. Our method is not optimal, which leads to an open problem of the optimal combination of oracles of a different order.

  • F. Stonyakin, A. Gasnikov, A. Tyurin, D. Pasechnyuk, A. Agafonov, P. Dvurechensky, D. Dvinskikh, S. Artamonov, V. Piskunova, Inexact relative smoothness and strong convexity for optimization and variational inequalities by inexact model, Preprint no. 2709, WIAS, Berlin, 2020, DOI 10.20347/WIAS.PREPRINT.2709 .
    Abstract, PDF (463 kByte)
    In this paper we propose a general algorithmic framework for first-order methods in optimization in a broad sense, including minimization problems, saddle-point problems and variational inequalities. This framework allows to obtain many known methods as a special case, the list including accelerated gradient method, composite optimization methods, level-set methods, Bregman proximal methods. The idea of the framework is based on constructing an inexact model of the main problem component, i.e. objective function in optimization or operator in variational inequalities. Besides reproducing known results, our framework allows to construct new methods, which we illustrate by constructing a universal conditional gradient method and universal method for variational inequalities with composite structure. These method works for smooth and non-smooth problems with optimal complexity without a priori knowledge of the problem smoothness. As a particular case of our general framework, we introduce relative smoothness for operators and propose an algorithm for VIs with such operator. We also generalize our framework for relatively strongly convex objectives and strongly monotone variational inequalities.

 Talks, Poster

  • G. Dong, Integrated physics-based method, learning-informed model and hyperbolic PDEs for imaging, Efficient Algorithms in Data Science, Learning and Computational Physics, Sanya, China, January 12 - 16, 2020.

  • M. Hintermüller, Functional-analytic and numerical issues in splitting methods for total variation-based image reconstruction, The Fifth International Conference on Numerical Analysis and Optimization, January 6 - 9, 2020, Sultan Qaboos University, Oman, January 6, 2020.

  • M. Hintermüller, Magnetic resonance fingerprinting of integrated physics models, Efficient Algorithms in Data Science, Learning and Computational Physics, January 12 - 16, 2020, Sanya, China, January 15, 2020.

  • K. Papafitsoros, Automatic distributed regularization parameter selection in Total Generalized Variation image reconstruction via bilevel optimization, Seminar, Shenzhen MSU-BIT University, Department of Mathematics, Shenzhen, China, January 16, 2020.

  • K. Papafitsoros, Automatic distributed regularization parameter selection in imaging via bilevel optimization, Workshop on PDE Constrained Optimization under Uncertainty and Mean Field Games, January 28 - 30, 2020, WIAS, Berlin, January 30, 2020.

  • K. Papafitsoros, Spatially dependent parameter selection in TGV based image restoration via bilevel optimization, Efficient Algorithms in Data Science, Learning and Computational Physics, Sanya, China, January 12 - 16, 2020.

  • A. Gasnikov, P. Dvurechensky, E. Gorbunov, E. Vorontsova, D. Selikhanovych, C.A. Uribe, Optimal tensor methods in smooth convex and uniformly convex optimization, Conference on Learning Theory, COLT 2019, Phoenix, Arizona, USA, June 24 - 28, 2019.

  • A. Kroshnin, N. Tupitsa, D. Dvinskikh, P. Dvurechensky, A. Gasnikov, C.A. Uribe , On the complexity of approximating Wasserstein barycenters, Thirty-sixth International Conference on Machine Learning, ICML 2019, Long Beach, CA, USA, June 9 - 15, 2019.

  • D. Dvinskikh, Distributed decentralized (stochastic) optimization for dual friendly functions, Optimization and Statistical Learning, Les Houches, France, March 24 - 29, 2019.

  • P. Dvurechensky, On the complexity of optimal transport problems, Computational and Mathematical Methods in Data Science, Berlin, October 24 - 25, 2019.

  • K. Papafitsoros, A function space framework for structural total variation regularization with applications in inverse problems, Applied Inverse Problems Conference, Minisymposium ``Multi-Modality/Multi-Spectral Imaging and Structural Priors'', July 8 - 12, 2019, Grenoble, France, August 8, 2019.

  • K. Papafitsoros, Quantitative MRI: From fingerprinting to integrated physics-based models, Synergistic Reconstruction Symposium, November 3 - 6, 2019, Chester, UK, November 4, 2019.

  • J. Polzehl, K. Tabelow, Analyzing neuroimaging experiments within R, 2019 OHBM Annual Meeting, Organization for Human Brain Mapping, Rome, Italy, June 9 - 13, 2019.

  • K. Tabelow, Adaptive smoothing data from multi-parameter mapping, 7th Nordic-Baltic Biometric Conference, June 3 - 5, 2019, Vilnius University, Faculty of Medicine, Lithuania, June 5, 2019.

  • K. Tabelow, Model-based imaging for quantitative MRI, KoMSO Challenge-Workshop Mathematical Modeling of Biomedical Problems, December 12 - 13, 2019, Friedrich-Alexander-Universität Erlangen-Nürnberg, December 12, 2019.

  • K. Tabelow, Quantitative MRI for in-vivo histology, Doktorandenseminar, Berlin School of Mind and Brain, April 1, 2019.

  • K. Tabelow, Speaker of Neuroimaging Workshop, Workshop in Advanced Statistics: Good Scientific Practice for Neuroscientists, February 13 - 14, 2019, University of Zurich, Center for Reproducible Science, Switzerland.

  • M. Hintermüller, M. Holler, K. Papafitsoros, A function space framework for structural total variation regularization in inverse problems, MIA 2018 -- Mathematics and Image Analysis, Humboldt-Universität zu Berlin, January 15 - 17, 2018.

  • J. Polzehl, High resolution magnetic resonance imaging experiments -- Lessons in nonlinear statistical modeling, 3rd Leibniz MMS Days, February 28 - March 2, 2018, Wissenschaftszentrum Leipzig, March 1, 2018.

  • M. Hintermüller, (Pre)Dualization, dense embeddings of convex sets, and applications in image processing, HCM Workshop: Nonsmooth Optimization and its Applications, May 15 - 19, 2017, Hausdorff Center for Mathematics, Bonn, May 15, 2017.

  • M. Hintermüller, Bilevel optimization and applications in imaging, Workshop ``Emerging Developments in Interfaces and Free Boundaries'', January 22 - 28, 2017, Mathematisches Forschungsinstitut Oberwolfach.

  • M. Hintermüller, Bilevel optimization and applications in imaging, Mathematisches Kolloquium, Universität Wien, Austria, January 18, 2017.

  • M. Hintermüller, Bilevel optimization and some ``parameter learning'' applications in image processing, LMS Workshop ``Variational Methods Meet Machine Learning'', September 18, 2017, University of Cambridge, Centre for Mathematical Sciences, UK, September 18, 2017.

  • M. Hintermüller, On (pre)dualization, dense embeddings of convex sets, and applications in image processing, Seminar, Isaac Newton Institute, Programme ``Variational Methods and Effective Algorithms for Imaging and Vision'', Cambridge, UK, August 30, 2017.

  • M. Hintermüller, On (pre)dualization, dense embeddings of convex sets, and applications in image processing, University College London, Centre for Inverse Problems, UK, October 27, 2017.

  • J. Polzehl, Connectivity networks in neuroscience -- Construction and analysis, Summer School 2017: Probabilistic and Statistical Methods for Networks, August 21 - September 1, 2017, Technische Universität Berlin, Berlin Mathematical School.

  • J. Polzehl, Structural adaptation -- A statistical concept for image denoising, Seminar, Isaac Newton Institute, Programme ``Variational Methods and Effective Algorithms for Imaging and Vision'', Cambridge, UK, December 5, 2017.

  • J. Polzehl, Toward in-vivo histology of the brain, Neuro-Statistics: The Interface between Statistics and Neuroscience, University of Minnesota, School of Statistics (IRSA), Minneapolis, USA, May 5, 2017.

  • J. Polzehl, Towards in-vivo histology of the brain, Berlin Symposium 2017: Modern Statistical Methods From Data to Knowledge, December 14 - 15, 2017, organized by Indiana Laboratory of Biostatistical Analysis of Large Data with Structure (IL-BALDS), Berlin, December 14, 2017.

  • K. Tabelow, Ch. D'alonzo, L. Ruthotto, M.F. Callaghan, N. Weiskopf, J. Polzehl, S. Mohammadi, Removing the estimation bias due to the noise floor in multi-parameter maps, The International Society for Magnetic Resonance in Medicine (ISMRM) 25th Annual Meeting & Exhibition, Honolulu, USA, April 22 - 27, 2017.

  • K. Tabelow, Adaptive smoothing of multi-parameter maps, Berlin Symposium 2017: Modern Statistical Methods From Data to Knowledge, December 14 - 15, 2017, organized by Indiana Laboratory of Biostatistical Analysis of Large Data with Structure (IL-BALDS), Berlin, December 14, 2017.

  • K. Tabelow, High resolution MRI by variance and bias reduction, Channel Network Conference 2017 of the International Biometric Society (IBS), April 24 - 26, 2017, Hasselt University, Diepenbeek, Belgium, April 25, 2017.

  • K. Tabelow, To smooth or not to smooth in fMRI, Cognitive Neuroscience Seminar, Universitätsklinikum Hamburg-Eppendorf, Institut für Computational Neuroscience, April 4, 2017.

  • T. Wu, Bilevel optimization and applications in imaging sciences, August 24 - 25, 2016, Shanghai Jiao Tong University, Institute of Natural Sciences, China.

  • M. Hintermüller, K. Papafitsoros, C. Rautenberg, A fine scale analysis of spatially adapted total variation regularisation, Imaging, Vision and Learning based on Optimization and PDEs, Bergen, Norway, August 29 - September 1, 2016.

  • M. Hintermüller, Bilevel optimization and applications in imaging, Imaging, Vision and Learning based on Optimization and PDEs, August 29 - September 1, 2016, Bergen, Norway, August 30, 2016.

  • M. Hintermüller, Shape and topological sensitivities in mathematical image processing, BMS Summer School ``Mathematical and Numerical Methods in Image Processing'', July 25 - August 5, 2016, Berlin Mathematical School, Technische Universität Berlin, Humboldt-Universität zu Berlin, Berlin, August 4, 2016.

  • J. Polzehl, Assessing dynamics in learning experiments, Novel Statistical Methods in Neuroscience, June 22 - 24, 2016, Otto-von-Guericke-Universität Magdeburg, Institut für Mathematische Stochastik, June 22, 2016.

  • J. Polzehl, Modeling high resolution MRI: Statistical issues, Mathematical and Statistical Challenges in Neuroimaging Data Analysis, January 31 - February 5, 2016, Banff International Research Station (BIRS), Banff, Canada, February 1, 2016.

  • K. Tabelow, V. Avanesov, M. Deliano, R. König, A. Brechmann, J. Polzehl, Assessing dynamics in learning experiments, Challenges in Computational Neuroscience: Transition Workshop, Research Triangle Park, North Carolina, USA, May 4 - 6, 2016.

  • K. Tabelow, Ch. D'alonzo, J. Polzehl, M.F. Callaghan, L. Ruthotto, N. Weiskopf, S. Mohammadi, How to achieve very high resolution quantitative MRI at 3T?, 22th Annual Meeting of the Organization of Human Brain Mapping (OHBM 2016), Geneva, Switzerland, June 26 - 30, 2016.

  • K. Tabelow, Adaptive smoothing in quantitative imaging, In-vivo histology/VBQ meeting, Max Planck Institute for Human Cognitinve and Brain Sciences, Leipzig, April 13, 2016.

  • N. Buzun, Multiscale parametric approach for change point detection, Information Technologies and Systems 2015, September 6 - 11, 2015, Russian Academy of Sciences, Institute for Information Transmission Problems, Sochi, Russian Federation, September 9, 2015.

  • J. Krämer, M. Deppe, K. Göbel, K. Tabelow, H. Wiendl, S. Meuth, Recovery of thalamic microstructural damage after Shiga toxin 2-associated hemolytic-uremic syndrome, 21th Annual Meeting of the Organization for Human Brain Mapping, Honolulu, USA, June 14 - 18, 2015.

  • H.U. Voss, J. Dyke, D. Ballon, N. Schiff, K. Tabelow, Magnetic resonance advection imaging (MRAI) depicts vascular anatomy, 21th Annual Meeting of the Organization for Human Brain Mapping, Honolulu, USA, June 14 - 18, 2015.

  • J. Polzehl, Analysing dMRI data: Consequences of low SNR, SAMSI Working group ``Structural Connectivity'', Statistical and Applied Mathematical Sciences Institute (SAMSI), Research Triangle Park, USA, December 8, 2015.

  • J. Polzehl, K. Tabelow, H.U. Voss, Towards higher spatial resolution in DTI using smoothing, 21th Annual Meeting of the Organization for Human Brain Mapping, Honolulu, USA, June 14 - 18, 2015.

  • J. Polzehl, K. Tabelow, Bias in low SNR diffusion MRI experiments: Problems and solution, 21th Annual Meeting of the Organization for Human Brain Mapping, Honolulu, USA, June 14 - 18, 2015.

  • J. Polzehl, Statistical problems in diffusion weighted MR, University of Minnesota, Biostatistics-Statistics Working Group in Imaging, Minneapolis, USA, January 30, 2015.

  • K. Tabelow, M. Deliano, M. Jörn, R. König, A. Brechmann, J. Polzehl, Towards a population analysis of behavioral and neural state transitions during associative learning, 21th Annual Meeting of the Organization for Human Brain Mapping, Honolulu, USA, June 14 - 18, 2015.

  • K. Tabelow, To smooth or not to smooth in fMRI, Seminar ``Bildgebende Verfahren in den Neurowissenschaften: Grundlagen und aktuelle Ergebnisse'', Universitätsklinikum Jena, IDIR, Medical Physics Group, April 17, 2015.

  • K. Tabelow, msPOAS -- An adaptive denoising procedure for dMRI data, Riemannian Geometry in Shape Analysis and Computational Anatomy, February 23 - 27, 2015, Universität Wien, Erwin Schrödinger International Institute for Mathematical Physics, Austria, February 25, 2015.

  • S. Mohammadi, L. Ruthotto, K. Tabelow, T. Feiweier, J. Polzehl, N. Weiskopf, ACID -- A post-processing toolbox for advanced diffusion MRI, 20th Annual Meeting of the Organization for Human Brain Mapping, Hamburg, June 8 - 12, 2014.

  • N. Angenstein, J. Polzehl, K. Tabelow, A. Brechmann, Categorical versus sequential processing of sound duration, 20th Annual Meeting of the Organization for Human Brain Mapping, Hamburg, June 8 - 12, 2014.

  • J. Polzehl, Estimation of sparse precision matrices, MMS-Workshop ``large p small n'', WIAS-Berlin, April 15, 2014.

  • J. Polzehl, Quantification of noise in MR experiments, Statistical Challenges in Neuroscience, September 3 - 5, 2014, University of Warwick, Centre for Research in Statistical Methodology, UK, September 4, 2014.

  • J. Polzehl, Quantification of noise in MR experiments, International Workshop ``Advances in Optimization and Statistics'', May 15 - 16, 2014, Russian Academy of Sciences, Institute of Information Transmission Problems (Kharkevich Institute), Moscow, May 16, 2014.

  • J. Polzehl, Statistical problems in diffusion weighted MR, CoSy Seminar, University of Uppsala, Department of Mathematics, Sweden, November 11, 2014.

  • K. Tabelow, S. Mohammadi, N. Weiskopf, J. Polzehl, Adaptive noise reduction in multi-shell dMRI data with SPM by POAS4SPM, 20th Annual Meeting of the Organization for Human Brain Mapping, Hamburg, June 8 - 12, 2014.

  • K. Tabelow, H.U. Voss, J. Polzehl, Local estimation of noise standard deviation in MRI images using propagation separation, 20th Annual Meeting of the Organization for Human Brain Mapping, Hamburg, June 8 - 12, 2014.

  • K. Tabelow, H.U. Voss, J. Polzehl, Local estimation of the noise level in MRI images using structural adaptation, 5th Ultra-Highfield MRI Scientific Symposium, Max Delbrück Center, Berlin, June 20, 2014.

  • K. Tabelow, High-resolution diffusion MRI by msPOAS, Statistical Challenges in Neuroscience, September 3 - 5, 2014, University of Warwick, Centre for Research in Statistical Methodology, UK, September 4, 2014.

  • K. Tabelow, S. Becker, S. Mohammadi, N. Weiskopf, J. Polzehl, Multi-shell position-orientation adaptive smoothing (msPOAS), 19th Annual Meeting of the Organization for Human Brain Mapping, Seattle, USA, June 16 - 20, 2013.

  • K. Tabelow, H.U. Voss, J. Polzehl, Analyzing fMRI and dMRI experiments with R, 19th Annual Meeting of the Organization for Human Brain Mapping, Seattle, USA, June 16 - 20, 2013.

  • K. Tabelow, Assessing the structure of the brain, WIAS-Day, WIAS Berlin, February 18, 2013.

  • K. Tabelow, Noise in diffusion MRI -- Impact and treatment, Strukturelle MR-Bildgebung in der neuropsychiatrischen Forschung, September 13 - 14, 2013, Philipps Universität Marburg, September 13, 2013.

  • M. Welvaert, K. Tabelow, R. Seurinck, Y. Rosseel, Defining ROIs based on localizer studies: More specific localization using adaptive smoothing, 19th Annual Meeting of the Organization for Human Brain Mapping, Seattle, USA, June 16 - 20, 2013.

  • S. Mohammadi, K. Tabelow, Th. Feiweier, J. Polzehl, N. Weiskopf, High-resolution diffusion kurtosis imaging (DKI) improves detection of gray-white matter boundaries, 19th Annual Meeting of the Organization for Human Brain Mapping, Seattle, USA, June 16 - 20, 2013.

  • J. Polzehl, Diffusion weighted magnetic resonance imaging -- Data, models and problems, Statistics Seminar, University of Minnesota, School of Statistics, USA, June 6, 2013.

  • J. Polzehl, Position-orientation adaptive smoothing (POAS) in diffusion weighted imaging, Neuroimaging Data Analysis, June 9 - 14, 2013, Statistical and Applied Mathematical Sciences Institute (SAMSI), Durham (NC), USA, June 9, 2013.

  • J. Polzehl, Position-orientation adaptive smoothing -- Noise reduction in dMRI, Strukturelle MR-Bildgebung in der Neuropsychiatrischen Forschung, September 13 - 14, 2013, Philipps-Universität Marburg, Klinik für Psychiatrie und Psychotherapie, Zentrum für Psychische Gesundheit, September 14, 2013.

  • J. Polzehl, dMRI modeling: An intermediate step to fiber tracking and connectivity, Neuroimaging Data Analysis, June 9 - 14, 2013, Statistical and Applied Mathematical Sciences Institute (SAMSI), Durham (NC), USA, June 9, 2013.

  • S. Becker, K. Tabelow, H.U. Voss, A. Anwander, R.M. Heidemann, J. Polzehl, Position-orientation adaptive smoothing (POAS) at 7T dMRI, Ultra-Highfield MRI Scientific Symposium, Max Delbrück Communication Center, Berlin, June 8, 2012.

  • S. Becker, Diffusion weighted imaging: Modeling and analysis beyond the diffusion tensor, Methodological Workshop: Structural Brain Connectivity: Diffusion Imaging---State of the Art and Beyond, October 30 - November 2, 2012, Humboldt-Universität zu Berlin, November 2, 2012.

  • S. Becker, Image processing via orientation scores, Workshop ``Computational Inverse Problems'', October 23 - 26, 2012, Mathematisches Forschungsinstitut Oberwolfach, October 25, 2012.

  • S. Becker, Revisiting: Propagation-separation approach for local likelihood estimation, PreMoLab: Moscow-Berlin-Stochastic and Predictive Modeling, May 29 - June 1, 2012, Russian Academy of Sciences, Institute for Information Transmission Problems (Kharkevich Institute), Moscow, May 31, 2012.

  • K. Tabelow, Adaptive methods for noise reduction in diffusion weighted MRI -- Position orientation adaptive smoothing (POAS), University College London, Wellcome Trust Centre for Neuroimaging, UK, November 1, 2012.

  • K. Tabelow, Functional magnetic resonance imaging: Estimation and signal detection, PreMoLab: Moscow-Berlin Stochastic and Predictive Modeling, May 31 - June 1, 2012, Russian Academy of Sciences, Institute for Information Transmission Problems (Kharkevich Institute), Moscow, May 31, 2012.

  • K. Tabelow, Position-orientation adaptive smoothing (POAS) diffusion weighted imaging data, Workshop on Neurogeometry, November 15 - 17, 2012, Masaryk University, Department of Mathematics and Statistics, Brno, Czech Republic, November 16, 2012.

  • J. Polzehl, Adaptive methods for noise reduction in diffusion weighted MR, BRIC Seminar Series, University of North Carolina, School of Medicine, Chapel Hill, NC, USA, July 10, 2012.

  • J. Polzehl, Medical image analysis in R (tutorial), The 8th International R User Conference (Use R!2012), June 11 - 15, 2012, Vanderbilt University, Department of Biostatics, Nashville, TN, USA, June 12, 2012.

  • J. Polzehl, Modeling dMRI data: An introduction from a statistical viewpoint, Workshop on Neurogeometry, November 15 - 17, 2012, Masaryk University, Department of Mathematics and Statistics, Brno, Czech Republic, November 16, 2012.

  • J. Polzehl, Statistical issues in diffusion weighted MR (dMRI), PreMoLab: Moscow-Berlin Stochastic and Predictive Modeling, May 31 - June 1, 2012, Russian Academy of Sciences, Institute for Information Transmission Problems (Kharkevich Institute), Moscow, May 31, 2012.

  • K. Tabelow, S. Keller , S. Mohammadi, H. Kugel, J.-S. Gerdes, J. Polzehl, M. Deppe, Structural adaptive smoothing increases sensitivity of DTI to detect microstructure alterations, 17th Annual Meeting of the Organization on Human Brain Mapping (HBM 2011), Quebec City, Canada, June 26 - 30, 2011.

  • K. Tabelow, H. Voss, J. Polzehl , Package dti: A framework for HARDI modeling in R, 17th Annual Meeting of the Organization on Human Brain Mapping (HBM 2011), Quebec City, Canada, June 26 - 30, 2011.

  • K. Tabelow, H. Voss, J. Polzehl , Structural adaptive smoothing methods for fMRI and its implementation in R, 17th Annual Meeting of the Organization on Human Brain Mapping (HBM 2011), Quebec City, Canada, June 26 - 30, 2011.

  • K. Tabelow, B. Whitcher, J. Polzehl, Performing tasks in medical imaging with R, 17th Annual Meeting of the Organization on Human Brain Mapping (HBM 2011), Quebec City, Canada, June 26 - 30, 2011.

  • K. Tabelow, Diffusion weighted imaging (DTI and beyond) using dti, The R User Conference 2011, August 15 - 18, 2011, University of Warwick, Department of Statistics, Coventry, UK, August 15, 2011.

  • K. Tabelow, Functional MRI using fmri, The R User Conference 2011, August 15 - 18, 2011, University of Warwick, Department of Statistics, Coventry, UK, August 15, 2011.

  • K. Tabelow, Modeling the orientation distribution function by mixtures of angular central Gaussian distributions, Cornell University, New York, Weill Medical College, USA, June 23, 2011.

  • K. Tabelow, Statistical parametric maps for functional MRI experiments in R: The package fmri, The R User Conference 2011, August 15 - 18, 2011, University of Warwick, Department of Statistics, Coventry, UK, August 18, 2011.

  • K. Tabelow, Structural adaptive smoothing fMRI and DTI data, SFB Research Center ``Mathematical Optimization and Applications in Biomedical Sciences'', Karl-Franzens-Universität Graz, Institut für Mathematik und Wissenschaftliches Rechnen, Austria, June 8, 2011.

  • K. Tabelow, Structural adaptive smoothing fMRI and DTI data, Maastricht University, Faculty of Psychology and Neuroscience, Netherlands, September 28, 2011.

  • J. Polzehl, Statistical issues in modeling diffusion weighted magnetic resonance data, 3rd International Conference on Statistics and Probability 2011 (IMS-China), July 8 - 11, 2011, Institute of Mathematical Statistics, Xian, China, July 10, 2011.

  • J. Polzehl, Modeling the orientation distribution function by mixtures of angular central Gaussian distributions, Workshop on Statistics and Neuroimaging 2011, November 23 - 25, 2011, WIAS, November 24, 2011.

  • K. Tabelow, J.D. Clayden, P. Lafaye DE Micheaux, J. Polzehl, V.J. Schmid, B. Whitcher, Image analysis and statistical inference in NeuroImaging with R., Human Brain Mapping 2010, Barcelona, Spain, June 6 - 10, 2010.

  • K. Tabelow, J. Polzehl, S. Mohammadi, M. Deppe, Impact of smoothing on the interpretation of FA maps, Human Brain Mapping 2010, Barcelona, Spain, June 6 - 10, 2010.

  • K. Tabelow, Structural adaptive smoothing fMRI and DTI data, Workshop on Novel Reconstruction Strategies in NMR and MRI 2010, September 9 - 11, 2010, Georg-August-Universität Göttingen, Fakultät für Mathematik und Informatik, September 11, 2010.

  • J. Polzehl, K. Tabelow, Image and signal processing in the biomedical sciences: Diffusion-weighted imaging modeling and beyond, 1st Annual Scientific Symposium ``Ultrahigh Field Magnetic Resonance'', Max Delbrück Center, Berlin, April 16, 2010.

  • J. Polzehl, Medical image analysis for structural and functional MRI, The R User Conference 2010, July 20 - 23, 2010, National Institute of Standards and Technology (NIST), Gaithersburg, USA, July 20, 2010.

  • J. Polzehl, Statistical issues in accessing brain functionality and anatomy, The R User Conference 2010, July 20 - 23, 2010, National Institute of Standards and Technology (NIST), Gaithersburg, USA, July 22, 2010.

  • J. Polzehl, Statistical problems in functional and diffusion weighted magnetic resonance, Uppsala University, Dept. of Mathematics, Graduate School in Mathematics and Computing, Sweden, May 27, 2010.

  • J. Polzehl, Structural adaptive smoothing in neuroscience applications, Statistische Woche Nürnberg 2010, September 14 - 17, 2010, Friedrich-Alexander-Universität Erlangen-Nürnberg, Naturwissenschaftliche Fakultät, September 16, 2010.

  • V. Spokoiny, Local parametric estimation, October 18 - 22, 2010, École Nationale de la Statistique et de l'Analyse de l'Information (ENSAI), Rennes, France.

  • V. Spokoiny, Semidefinite non-Gaussian component analysis, Bivariate Penalty Choice in Model Selection, Deutsches Diabetes Zentrum Düsseldorf, June 17, 2010.

  • K. Tabelow, J. Polzehl, H.U. Voss, Structural adaptive smoothing methods for high-resolution fMRI, 15th Annual Meeting of the Organization for Human Brain Mapping (HBM 2009), San Francisco, USA, June 18 - 22, 2009.

  • K. Tabelow, A3 - Image and signal processing in the biomedical sciences: diffusion weighted imaging - modeling and beyond, Center Days 2009 (DFG Research Center scshape Matheon), March 30 - April 1, 2009, Technische Universität Berlin, March 30, 2009.

  • K. Tabelow, Structural adaptive methods in fMRI and DTI, Biomedical Imaging Research Seminar Series, Weill Cornell Medical College, Department of Radiology & Citigroup Biomedical Imaging Center, New York, USA, June 25, 2009.

  • K. Tabelow, Structural adaptive methods in fMRI and DTI, Memorial Sloan-Kettering Cancer Center, New York, USA, June 25, 2009.

  • K. Tabelow, Structural adaptive smoothing in fMRI and DTI, Workshop on Recent Developments in fMRI Analysis Methods, Bernstein Center for Computational Neuroscience Berlin, January 23, 2009.

  • J. Polzehl, K. Tabelow, Structural adaptive smoothing diffusion tensor imaging data: The R-package dti, 15th Annual Meeting of the Organization for Human Brain Mapping (HBM 2009), San Francisco, USA, June 18 - 22, 2009.

  • N. Serdyukova, Local parametric estimation under noise misspecification in regression problem, Workshop on structure adapting methods, November 6 - 8, 2009, WIAS, November 7, 2009.

  • V. Spokoiny, Adaptive local parametric estimation, Université Joseph Fourier Grenoble I, Équipe de Statistique et Modélisation Stochastique, Laboratoire Jean Kuntzmann, France, February 26, 2009.

  • V. Spokoiny, Adaptive local parametric methods in imaging, Technische Universität Kaiserslautern, Fachbereich Mathematik, January 23, 2009.

  • V. Spokoiny, Modern nonparametric statistics (block lecture), October 2 - 13, 2009, École Nationale de la Statistique et de l'Analyse de l'Information (ENSAI), Rennes, France.

  • V. Spokoiny, Modern nonparametric statistics (block lecture), October 18 - 29, 2009, Yale University, New Haven, USA.

  • V. Spokoiny, Modern nonparametric statistics (block lecture), January 13 - 16, 2009, École Nationale de la Statistique et de l'Analyse de l'Information (ENSAI), Rennes, France.

  • V. Spokoiny, Parameter tuning in statistical inverse problem, European Meeting of Statisticians (EMS2009), July 20 - 22, 2009, Université Paul Sabatier, Toulouse, France, July 21, 2009.

  • V. Spokoiny, Saddle point model selection, Université Toulouse 1 Capitole, Toulouse School of Economics, France, November 24, 2009.

  • V. Spokoiny, Saddle point model selection, Workshop on structure adapting methods, November 6 - 8, 2009, WIAS, November 7, 2009.

  • V. Spokoiny, Sparse non-Gaussian component analysis, Workshop ``Sparse Recovery Problems in High Dimensions: Statistical Inference and Learning Theory'', March 15 - 21, 2009, Mathematisches Forschungsinstitut Oberwolfach, March 16, 2009.

  • K. Tabelow, A3 - Image and signal processing in medicine and biosciences, Center Days 2008 (DFG Research Center scshape Matheon), April 7 - 9, 2008, Technische Universität Berlin, April 7, 2008.

  • K. Tabelow, Structure adaptive smoothing medical images, 22. Treffpunkt Medizintechnik: Fortschritte in der medizinischen Bildgebung, Charité, Campus Virchow Klinikum Berlin, May 22, 2008.

  • K. Tabelow, Strukturadaptive Bild- und Signalverarbeitung, Workshop of scshape Matheon with Siemens AG (Health Care Sector) in cooperation with Center of Knowledge Interchange (CKI) of Technische Universität (TU) Berlin and Siemens AG, TU Berlin, July 8, 2008.

  • J. Polzehl, New developments in structural adaptive smoothing: Images, fMRI and DWI, University of Tromsoe, Norway, May 27, 2008.

  • J. Polzehl, Smoothing fMRI and DWI data using the propagation-separation approach, University of Utah, Computing and Scientific Imaging Institute, Salt Lake City, USA, September 11, 2008.

  • J. Polzehl, Structural adaptive smoothing in diffusion tensor imaging, Workshop on ``Locally Adaptive Filters in Signal and Image Processing'', November 24 - 26, 2008, EURANDOM, Eindhoven, Netherlands, November 25, 2008.

  • J. Polzehl, Structural adaptive smoothing using the propagation-separation approach, University of Chicago, Department of Statistics, USA, September 3, 2008.

  • K. Tabelow, J. Polzehl, H.U. Voss, Increasing SNR in high resolution fMRI by spatially adaptive smoothing, Human Brain Mapping Conference 2007, Chicago, USA, June 10 - 14, 2007.

  • K. Tabelow, J. Polzehl, H.U. Voss, Reducing the number of necessary diffusion gradients by adaptive smoothing, Human Brain Mapping Conference 2007, Chicago, USA, June 10 - 14, 2007.

  • K. Tabelow, A3: Image and signal processing in medicine and biosciences, A-Day des sc Matheon, Konrad-Zuse-Zentrum für Informationstechnik Berlin (ZIB), December 5, 2007.

  • K. Tabelow, Improving data quality in fMRI and DTI by structural adaptive smoothing, Cornell University, Weill Medical College, New York, USA, June 18, 2007.

  • K. Tabelow, Structural adaptive signal detection in fMRI and structure enhancement in DTI, International Workshop on Image Analysis in the Life Sciences, Theory and Applications, February 28 - March 2, 2007, Johannes Kepler Universität Linz, Austria, March 2, 2007.

  • K. Tabelow, Structural adaptive smoothing in medical imaging, Seminar ``Visualisierung und Datenanalyse'', Konrad-Zuse-Zentrum für Informationstechnik Berlin (ZIB), January 30, 2007.

  • J. Polzehl, Propagation-separation procedures for image processing, International Workshop on Image Analysis in the Life Sciences, Theory and Applications, February 28 - March 2, 2007, Johannes Kepler Universität Linz, Austria, March 2, 2007.

  • J. Polzehl, Structural adaptive smoothing in imaging problems, Spring Seminar Series, University of Minnesota, School of Statistics, College of Liberal Arts, USA, May 24, 2007.

  • J. Polzehl, Structural adaptive smoothing procedures by propagation-separation methods, Final meeting of the DFG Priority Program 1114, November 7 - 9, 2007, Freiburg, November 7, 2007.

  • K. Tabelow, J. Polzehl, H.U. Voss, V. Spokoiny, Analyzing fMRI experiments with structural adaptive smoothing methods, Human Brain Mapping Conference, Florence, Italy, June 12 - 15, 2006.

  • K. Tabelow, J. Polzehl, V. Spokoiny, J.P. Dyke, L.A. Heier, H.U. Voss, Accurate localization of functional brain activity using structure adaptive smoothing, ISMRM 14th Scientific Meeting & Exhibition, Seattle, USA, May 10 - 14, 2006.

  • K. Tabelow, Analyzing fMRI experiments with structural adaptive smoothing methods, BCCN PhD Symposium 2006, June 7 - 8, 2006, Bernstein Center for Computational Neuroscience Berlin, Bad Liebenwalde, June 8, 2006.

  • K. Tabelow, Image and signal processing in medicine and biosciences, Evaluation Colloquium of the DFG Research Center sc Matheon, Berlin, January 24 - 25, 2006.

  • J. Polzehl, Structural adaptive smoothing by propagation-separation, 69th Annual Meeting of the IMS and 5th International Symposium on Probability and its Applications, July 30 - August 4, 2006, Rio de Janeiro, Brazil, July 30, 2006.

  • K. Tabelow, J. Polzehl, Structure adaptive smoothing procedures in medical imaging, 19. Treffpunkt Medizintechnik ``Imaging und optische Technologien für die Medizin'', Berlin, June 1, 2005.

  • K. Tabelow, Adaptive weights smoothing in the analysis of fMRI data, Ludwig-Maximilians-Universität München, SFB 386, December 8, 2005.

  • K. Tabelow, Detecting shape and borders of activation areas infMRI data, Forschungsseminar ''Mathematische Statistik'', WIAS, Berlin, November 23, 2005.

  • K. Tabelow, Spatially adaptive smoothing infMRI analysis, Neuroimaging Center, Cahrité, Berlin, November 10, 2005.

  • J. Polzehl, Adaptive smoothing by propagation-separation, Australian National University, Center of Mathematics and its Applications, Canberra, March 31, 2005.

  • J. Polzehl, Image reconstruction and edge enhancement by structural adaptive smoothing, 55th Session of the International Statistical Institute (ISI), April 5 - 12, 2005, Sydney, Australia, April 8, 2005.

  • J. Polzehl, Propagation-separation at work: Main ideas and applications, National University of Singapore, Department of Probability Theory and Statistics, March 24, 2005.

  • J. Polzehl, Spatially adaptive smoothing: A propagation-separation approach for imaging problems, Joint Statistical Meetings, August 7 - 11, 2005, Minneapolis, USA, August 11, 2005.

  • J. Polzehl, Structural adaptive smoothing by propagation-separation methods, Ludwig-Maximilians-Universität München, SFB 386, December 7, 2005.

  • J. Polzehl, Local likelihood modeling by structural adaptive smoothing, University of Minnesota, School of Statistics, Minneapolis, USA, September 9, 2004.

  • J. Polzehl, Smoothing by adaptive weights: An overview, Chalmers University of Technology, Department of Mathematical Statistics, Gothenburg, Sweden, May 11, 2004.

  • J. Polzehl, Structural adaptive smoothing methods, Georg-August-Universität Göttingen, Institut für Mathematische Stochastik, January 14, 2004.

  • J. Polzehl, Structural adaptive smoothing methods, Tandem-Workshop on Non-linear Optimization at the Crossover of Discrete Geometry and Numerical Analysis, July 15 - 16, 2004, Technische Universität Berlin, Institut für Mathematik, July 15, 2004.

  • J. Polzehl, Structural adaptive smoothing methods and possible applications in imaging, Charité Berlin, NeuroImaging Center, Berlin, July 1, 2004.

  • J. Polzehl, Structural adaptive smoothing methods for imaging problems, Annual Conference of Deutsche Mathematiker-Vereinigung (DMV), September 13 - 17, 2004, Heidelberg, September 14, 2004.

  • J. Polzehl, Structural adaptive smoothing methods for imaging problems, German-Israeli Binational Workshop, October 20 - 22, 2004, Ollendorff Minerva Center for Vision and Image Sciences, Technion, Haifa, Israel, October 21, 2004.

  • A. Hutt, J. Polzehl, Spatial adaptive signal detection in fMRT, Human Brain Mapping Conference, New York, USA, June 17 - 22, 2003.

  • J. Polzehl, Adaptive smoothing procedures for image processing, Workshop on Nonlinear Analysis of Multidimensional Signals, February 25 - 28, 2003, Teistungenburg, February 25, 2003.

  • J. Polzehl, Image processing using Adaptive Weights Smoothing, Uppsala University, Department of Mathematics, Sweden, May 7, 2003.

  • J. Polzehl, Local likelihood modeling by Adaptive Weights Smoothing, Joint Statistical Meetings, August 3 - 7, 2003, San Francisco, USA, August 6, 2003.

  • J. Polzehl, Local modeling by structural adaptation, The Art of Semiparametrics, October 19 - 21, 2003, Berlin, October 20, 2003.

  • J. Polzehl, Structural adaptive smoothing methods and applications in imaging, Magnetic Resonance Seminar, Physikalisch-Technische Bundesanstalt, March 13, 2003.

  • J. Polzehl, Structural adaptation I: Pointwise adaptive smoothing and imaging, University of Tromso, Department of Mathematics, Norway, April 11, 2002.

  • J. Polzehl, Structural adaptation I: Varying coefficient regression modeling by adaptive weights smoothing, Workshop on Nonparametric Smoothing in Complex Statistical Models, April 27 - May 4, 2002, Ascona, Switzerland, April 30, 2002.

  • J. Polzehl, Structural adaptation methods in imaging, Joint Statistical Meetings 2002, August 11 - 15, 2002, New York, USA, August 12, 2002.

  • J. Polzehl, Structural adaptive smoothing and its applications in imaging and time series, Uppsala University, Department of Mathematics, Sweden, May 2, 2002.

  • J. Polzehl, Structural adaptive estimation, Bayer AG, Leverkusen, November 29, 2001.

  • J. Polzehl, Adaptive weights smoothing with applications in imaging, Universität Essen, Fachbereich Mathematik, Sfb 475, November 6, 2000.

  • J. Polzehl, Adaptive weights smoothing with applications to image denoising and signal detection, Université Catholique de Louvain-la-Neuve, Institut de Statistique, Belgium, September 29, 2000.

  • J. Polzehl, Functional and dynamic Magnet Resonance Imaging using adaptive weights smoothing, Workshop "`Mathematical Methods in Brain Mapping"', Université de Montréal, Centre de Recherches Mathématiques, Canada, December 11, 2000.

  • J. Polzehl, Spatially adaptive procedures for signal detection in fMRI, Tagung "`Controlling Complexity for Strong Stochastic Dependencies"', September 10 - 16, 2000, Mathematisches Forschungsinstitut Oberwolfach, September 11, 2000.

  • J. Polzehl, Spatially adaptive smoothing techniques for signal detection in functional and dynamic Magnet Resonance Imaging, Human Brain Mapping 2000, San Antonio, Texas, USA, June 12 - 16, 2000.

  • J. Polzehl, Spatially adaptive smoothing techniques for signal detection in functional and dynamic Magnet Resonance Imaging, MEDICA 2000, Düsseldorf, November 22 - 25, 2000.

 External Preprints

  • A. Sadiev, A. Beznosikov, P. Dvurechensky, A. Gasnikov, Zeroth-order algorithms for smooth saddle-point problems, Preprint no. arXiv:2009.09908, Cornell University, 2020.
    Abstract
    In recent years, the importance of saddle-point problems in machine learning has increased. This is due to the popularity of GANs. In this paper, we solve stochastic smooth (strongly) convex-concave saddle-point problems using zeroth-order oracles. Theoretical analysis shows that in the case when the optimization set is a simplex, we lose only logn times in the stochastic convergence term. The paper also provides an approach to solving saddle-point problems, when the oracle for one of the variables has zero order, and for the second - first order. Subsequently, we implement zeroth-order and 1/2th-order methods to solve practical problems.

  • D. Tiapkin, A. Gasnikov, P. Dvurechensky, Stochastic saddle-point optimization for Wasserstein Barycenters, Preprint no. arXiv:2006.06763, Cornell University, 2020.
    Abstract
    We study the computation of non-regularized Wasserstein barycenters of probability measures supported on the finite set. The first result gives a stochastic optimization algorithm for the discrete distribution over the probability measures which is comparable with the current best algorithms. The second result extends the previous one to the arbitrary distribution using kernel methods. Moreover, this new algorithm has a total complexity better than the Stochastic Averaging approach via the Sinkhorn algorithm in many cases.

  • N. Tupitsa, P. Dvurechensky, A. Gasnikov, C.A. Uribe , Multimarginal optimal transport by accelerated alternating minimization, Preprint no. arXiv:2004.02294, Cornell University Library, arXiv.org, 2020.
    Abstract
    We consider a multimarginal optimal transport, which includes as a particular case the Wasserstein barycenter problem. In this problem one has to find an optimal coupling between m probability measures, which amounts to finding a tensor of the order m. We propose an accelerated method based on accelerated alternating minimization and estimate its complexity to find the approximate solution to the problem. We use entropic regularization with sufficiently small regularization parameter and apply accelerated alternating minimization to the dual problem. A novel primal-dual analysis is used to reconstruct the approximately optimal coupling tensor. Our algorithm exhibits a better computational complexity than the state-of-the-art methods for some regimes of the problem parameters.

  • P. Dvurechensky, K. Safin, S. Shtern, M. Staudigl, Generalized self-concordant analysis of Frank-Wolfe algorithms, Preprint no. arXiv:2010.01009, Cornell University, 2020.
    Abstract
    Projection-free optimization via different variants of the Frank-Wolfe (FW) method has become one of the cornerstones in large scale optimization for machine learning and computational statistics. Numerous applications within these fields involve the minimization of functions with self-concordance like properties. Such generalized self-concordant (GSC) functions do not necessarily feature a Lipschitz continuous gradient, nor are they strongly convex. Indeed, in a number of applications, e.g. inverse covariance estimation or distance-weighted discrimination problems in support vector machines, the loss is given by a GSC function having unbounded curvature, implying absence of theoretical guarantees for the existing FW methods. This paper closes this apparent gap in the literature by developing provably convergent FW algorithms with standard O(1/k) convergence rate guarantees. If the problem formulation allows the efficient construction of a local linear minimization oracle, we develop a FW method with linear convergence rate.

  • P. Dvurechensky, S. Shtern, M. Staudigl, P. Ostroukhov, K. Safin, Self-concordant analysis of Frank-Wolfe algorithms, Preprint no. arXiv:2002.04320, Cornell University, 2020.
    Abstract
    Projection-free optimization via different variants of the Frank-Wolfe (FW) method has become one of the cornerstones in optimization for machine learning since in many cases the linear minimization oracle is much cheaper to implement than projections and some sparsity needs to be preserved. In a number of applications, e.g. Poisson inverse problems or quantum state tomography, the loss is given by a self-concordant (SC) function having unbounded curvature, implying absence of theoretical guarantees for the existing FW methods. We use the theory of SC functions to provide a new adaptive step size for FW methods and prove global convergence rate O(1/k), k being the iteration counter. If the problem can be represented by a local linear minimization oracle, we are the first to propose a FW method with linear convergence rate without assuming neither strong convexity nor a Lipschitz continuous gradient.

  • F. Stonyakin, A. Gasnikov, A. Tyurin, D. Pasechnyuk, A. Agafonov, P. Dvurechensky, D. Dvinskikh, A. Kroshnin, V. Piskunova, Inexact model: A framework for optimization and variational inequalities, Preprint no. arXiv:1902.00990, Cornell University Library, arXiv.org, 2019.

  • F. Stonyakin, D. Dvinskikh, P. Dvurechensky, A. Kroshnin, O. Kuznetsova, A. Agafonov, A. Gasnikov, A. Tyurin, C.A. Uribe, D. Pasechnyuk, S. Artamonov, Gradient methods for problems with inexact model of the objective, Preprint no. arXiv:1902.09001, Cornell University Library, arXiv.org, 2019.

  • D. Dvinskikh, E. Gorbunov, A. Gasnikov, P. Dvurechensky, C.A. Uribe, On dual approach for distributed stochastic convex optimization over networks, Preprint no. arXiv:1903.09844, Cornell University Library, arXiv.org, 2019.
    Abstract
    We introduce dual stochastic gradient oracle methods for distributed stochastic convex optimization problems over networks. We estimate the complexity of the proposed method in terms of probability of large deviations. This analysis is based on a new technique that allows to bound the distance between the iteration sequence and the solution point. By the proper choice of batch size, we can guarantee that this distance equals (up to a constant) to the distance between the starting point and the solution.

Contact

Contributing Groups of WIAS

Mathematical Context

Related main application areas
